dCC Jogbox – User Manual

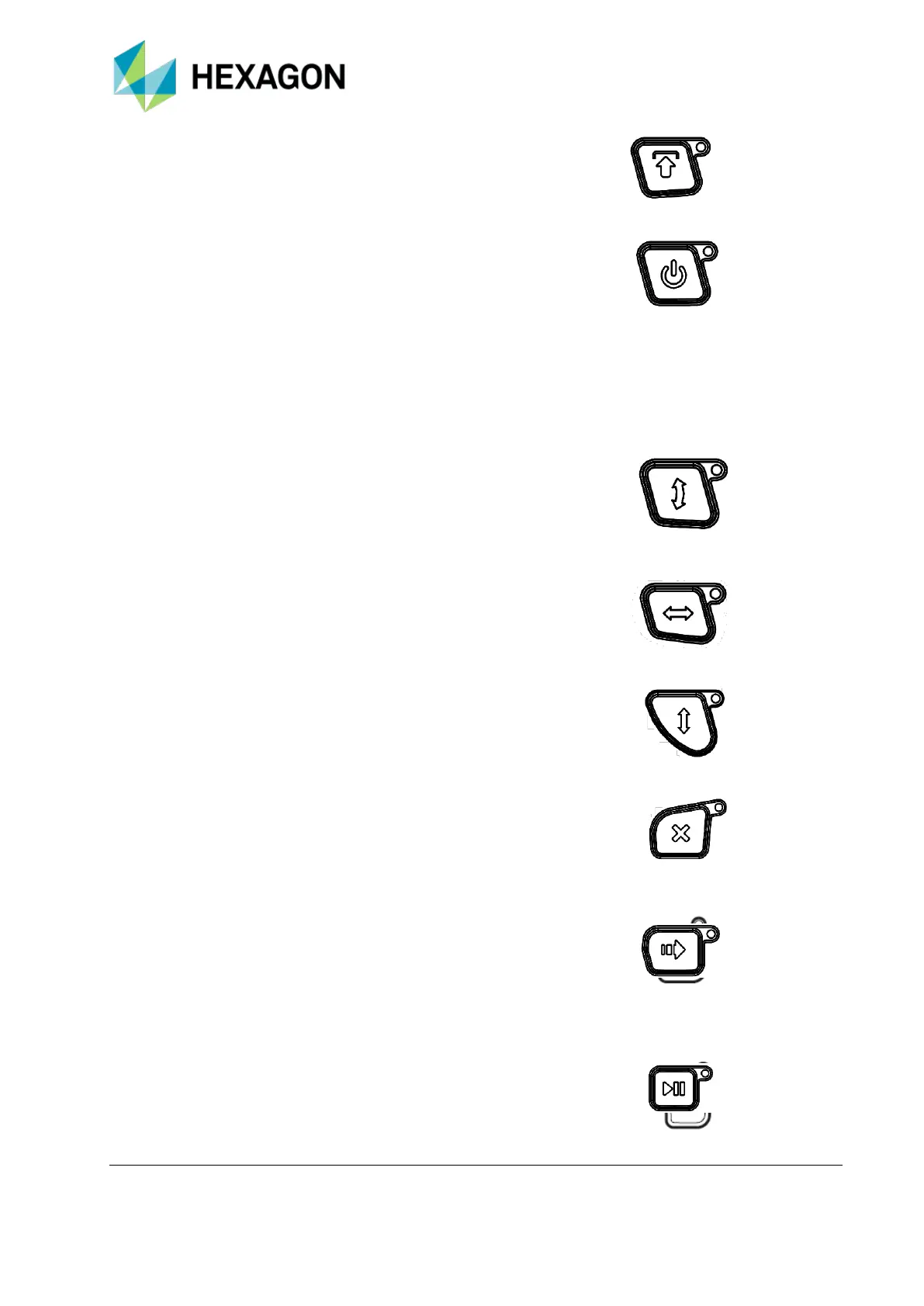

SHIFT: This is used to access the lower registers of buttons
with two fields. (X/A, Y/B, Z/W, LOCK/UNLOCK,
RUN/HOLD). When active, the lower registers can be
accessed. W is for other machines with optional rotary tables.
Power On/Off:
AXES BUTTONS
This constrains movement of the machine to the selected axes when the joystick is deflected. Axes with
-, Y- and Z-axis cannot be activated
but the lower register A- and B- axis can be, if available. X-, Y- and Z-axis represent the axes of the machine.
A- and B- refer to the axes of the motorized wrist.
Z AXIS: Must be pressed to unlock
Z joystick enable. This prevents unwanted movement.
X AXIS: Must be pressed to unlock X joystick enable. This
prevents unwanted movement.
Y AXIS: Must be pressed to unlock Y
joystick enable. This prevents unwanted movement.
DEL PNT: This will delete last point manually taken.
MOVE POINT: This button is used to learn positional moves,
enter points or to continue program execution when prompted.
When learning positional moves or entering points, the coordinate
pressed. The function of this button is software dependent.
RUN/HOLD: This is a two function button: the HOLD button
stops program execution, accessed by pressing this button with
SHIFT inactive. RUN resumes execution of a program placed
in HOLD state, activated by SHIFT (lighting SHIFT LED) then
pressing RUN; RUN LED lights.
