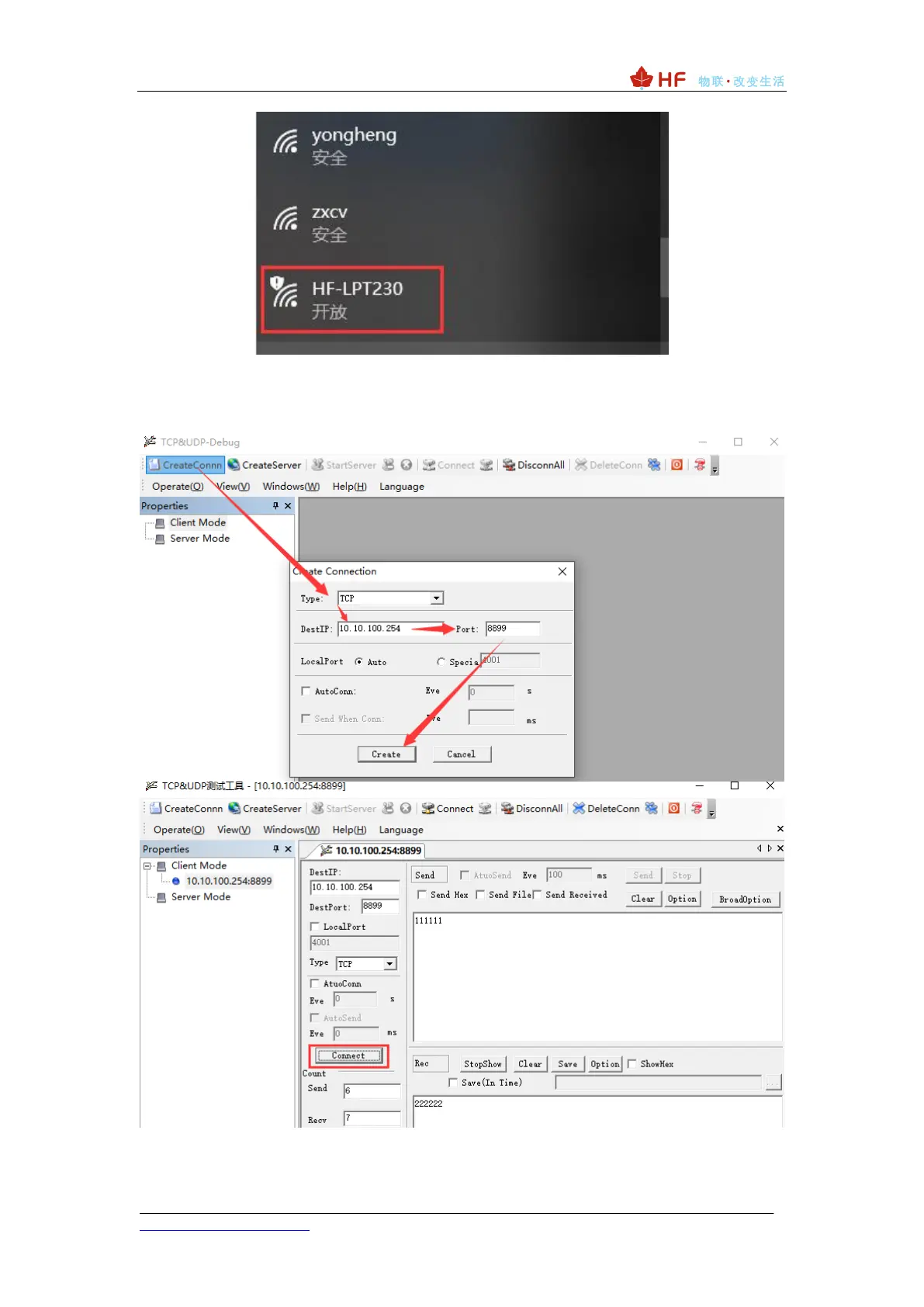

Open the TCP & UDP Deb
ug software, create a TCP client, fill in the module's IP
address
and TCP informat
ion
(default
AP IP: 10.10.100.254, TCP
Server, 8899 port, available
AT+LANN, AT+NETP
command to
mo
di
fy the
defau
lt
information), click
【
Connect
】
establish
connection.
The two-way transm
ission and reception of data is co
mpleted as shown below.
8
10
Table of Contents
Table of Contents
2
Hardware Introduction
3
Hf-Lpx30 Evk
3
Serial Port Settings
4
Securecrtserial Port Tool Securecrt
4
Setting Serial Port Parameters
4
Securecrt Software Usage
4
Test Case
8
Transparent Transmission of UART and Wi-Fi Module in AP Mode
8
Transparent Transmission of UART and Wi-Fi Module in STA Mode
11
MQTT Transmission in STA Mode
15
HTTP Transmissio in STA Mode
17
Heartbeat Package, Registration Package
18
Sending at Commands in Network Mode
19
Firmware Upgrade
21
Serial Port Firmware Upgrade
21
Internal Web Page Firmware Upgrade
23
External Configuration Web Page Firmware Upgrade
24
HF Udate Mass Production Tool Mode Upgrade
24
AT+UPURL Command Mode Upgrade
25
Debug Information Function
27
Serial Port Log Information Output Enable
27
Module Hardware Description
29
Serial Port Level Conversion
29
Power Supply Design
32
Internal Antenna
33
HF-LPCX30/HF-LPF100 Module BLE THROUGHPUT
