HGI Generators HRD270T1 - Page 14

Harrington Generators International
9HRD Diesel Generator 498-1052
Specifi cation
C
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
A A B B
C C D D
E E
F F
C
Material Finish
Title
Drg No.
For insert & fabrication specifications refer to PD999-001
19.06.14

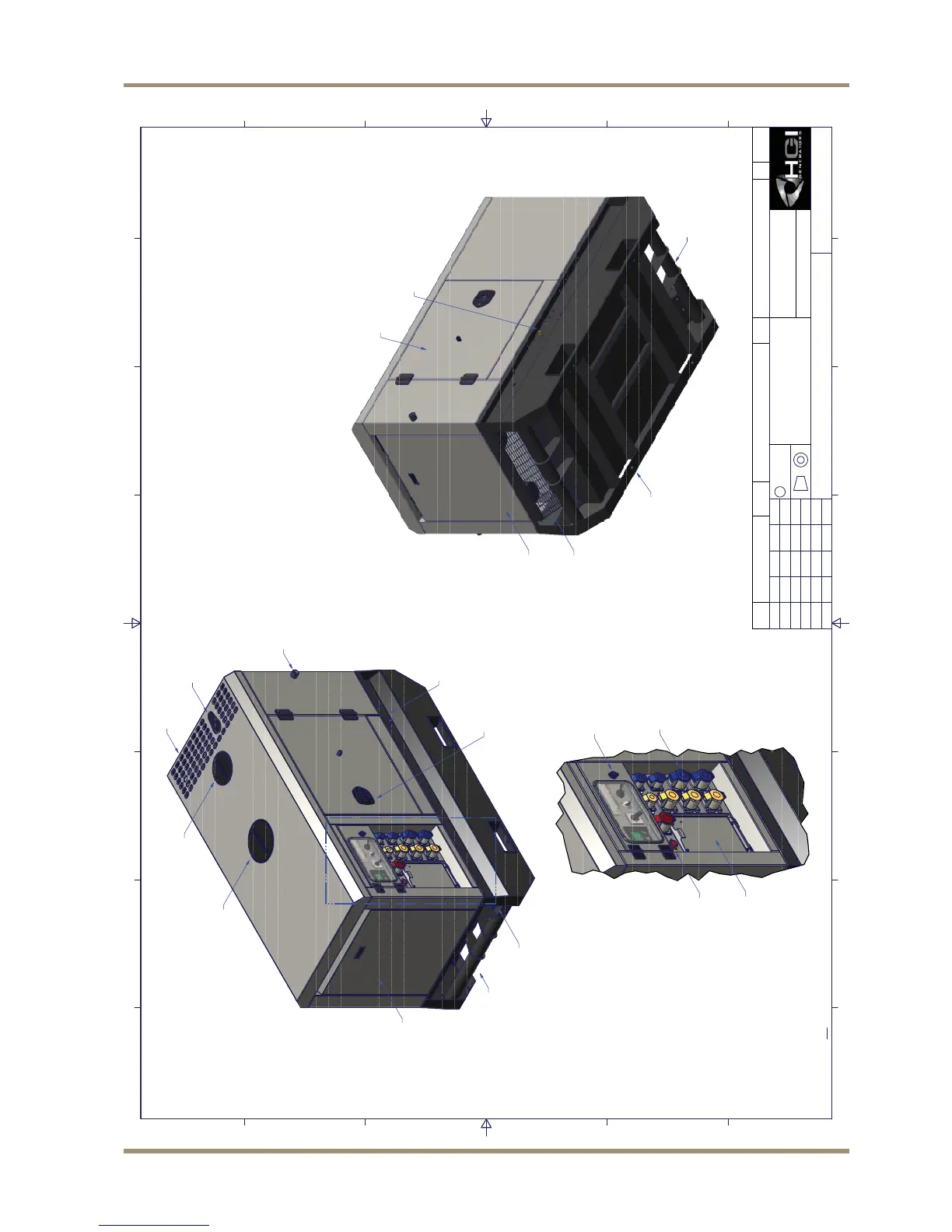

HRD270T1+ General Arrangement
WG-HRD270T1+
A
R.W
19.06.14
WG-HRD270T1+
Item
Description
Item
Pt No.
Item
Material
Sht
No.
Weight (kg)
C
3/3
3D views are for illustration only.
Exhaust
Outlet
Radiator
Access
Lifting Beam
Access
Terminal/Earth/Remote
Cable Outlet
Bolt-on Panel
for Battery Removal
Key/Padlock Lockable
Hinged Service Door
with access to
Internal Fuel Filler &
Fuel Selector Valve
Cool Air Inlet
Tow Bar
Bolt Down Holes
External Fuel
Connections
Oil Drain
Bolt-on Panel
for Silencer Access
Hot Air
Outlet
Hot Air
Outlet
Door Stay
Key/Padlock Lockable
Hinged Service Door
with access to
Battery Isolator
Lockable Control
Panel Cover
Emergency Stop
Button
Terminal Connection
Access Cover
Output Sockets
1 x 16A 110V 3 x 32A 110V 2 x 16A 240V 2 x 32A 240V 1 x 32A 400V
