HLK-LD2410B
manual
• The table on the right is for reference only, please confirm with the supplier for the actual value

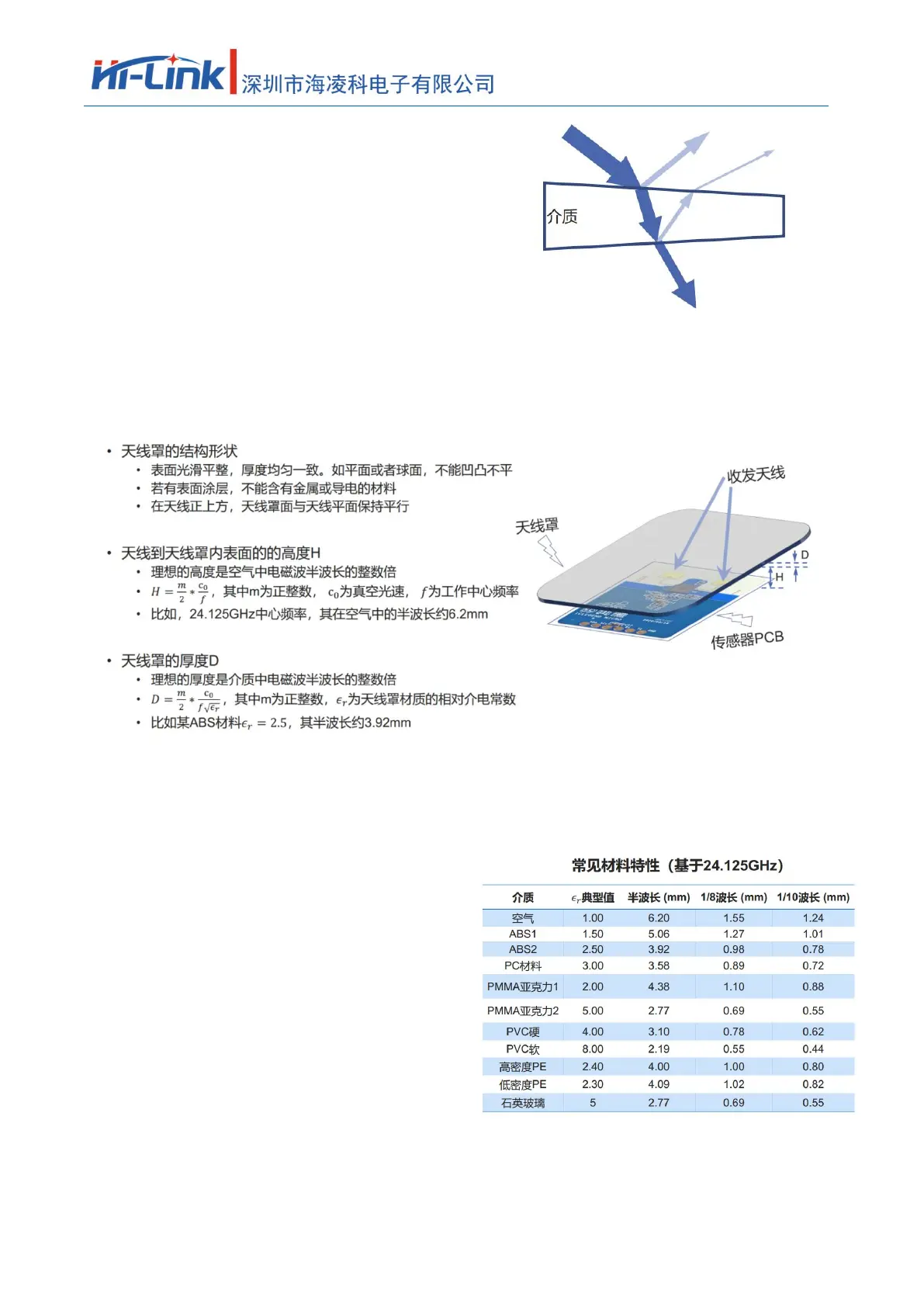

• Height H from the antenna to the inner surface of the radome
• When space permits, 1x or 1.5x wavelength is preferred
• For example, 12.4 or 18.6mm is recommended for 24.125GHz
• Error control: ±1.2mm
• Thickness D of the radome
• Recommended half-wavelength, error control ±20%
• If the half-wavelength thickness requirement cannot be met
• It is recommended to use low��s material
• Recommended thickness is 1/8 wavelength or thinner
Table 3 Common material properties of radome
• The influence of inhomogeneous materials or multi-layer composite materials on radar performance, it is recommended to make experimental adjustments during design
