5
4
5. Put the all 8pcs screws into the holes,then tighten
the each screws properly.
One-step Folding latch:
You must make sure the folding latch is locked before riding.
Fold up the latch and insert into hole until you hear a sound.
ATTENTION:
3. Assembly
4. Use the M8*30 Allen rod through the folding wrench, and
screw an M6*12 Allen screw on the other end by hand. Then
use two H5 Allen wrenches to tighten the screw and the rod.
4
5
2
1
3
Accessories:
1:front fork 2: threaded pipe 3: M8 * 45 hexagon socket head screw 4: Motor cable female plug 5: Motor cable male plug

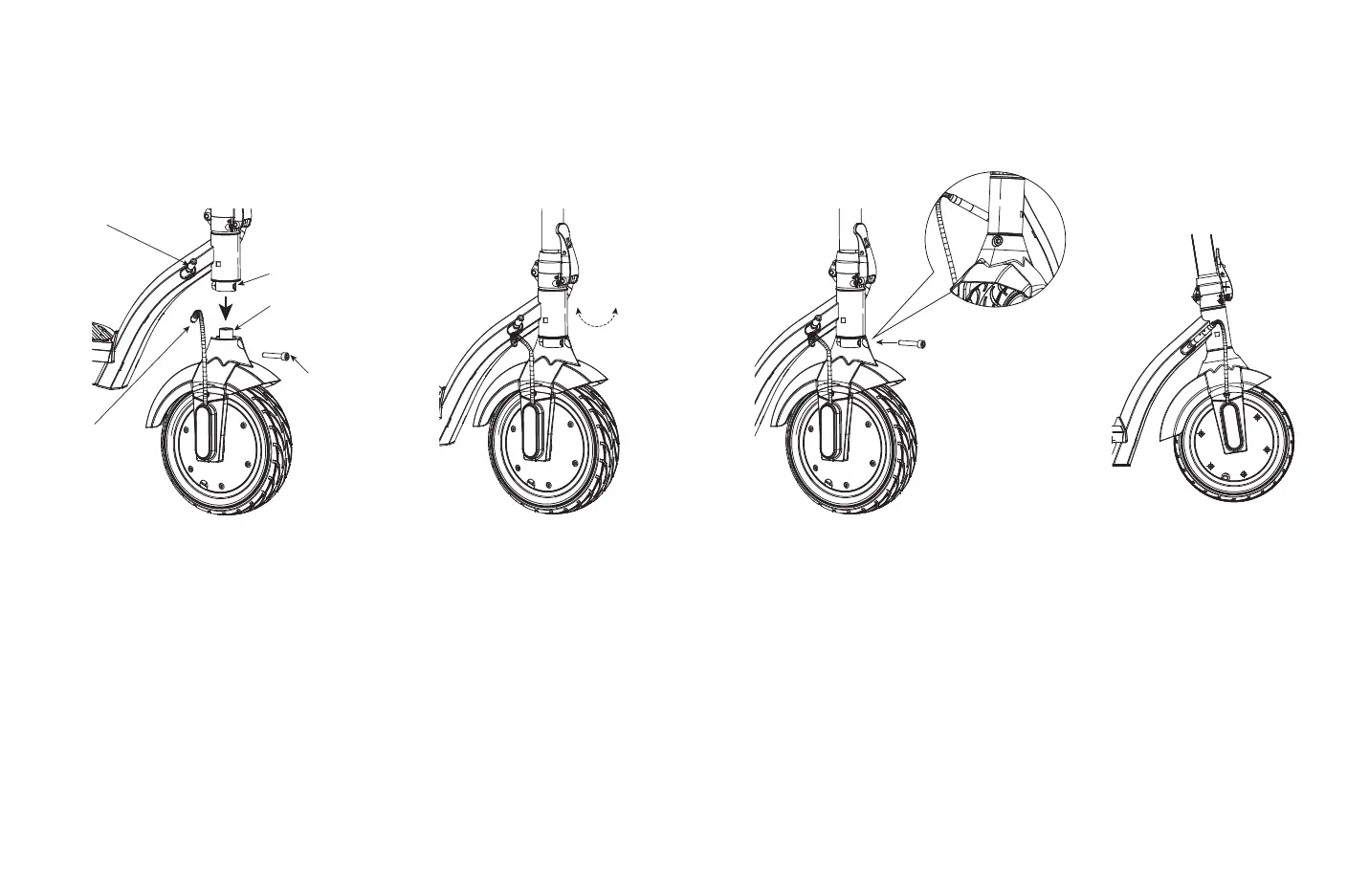

Step 1: insert the front fork
assembly into the threaded pipe.
Step 2: Rotate it to align the hole
of the front fork assembly with the
hole of the front fork threaded pipe.
Step 3: Thread the M8 * 45
hexagon socket head screw
through the threaded pipe of the
front fork and the front fork
assembly. Tighten the screws with
the wrench.
Step 4: Connect the two motor
wires 4 and 5.
