4
CASE ASSEMBLY

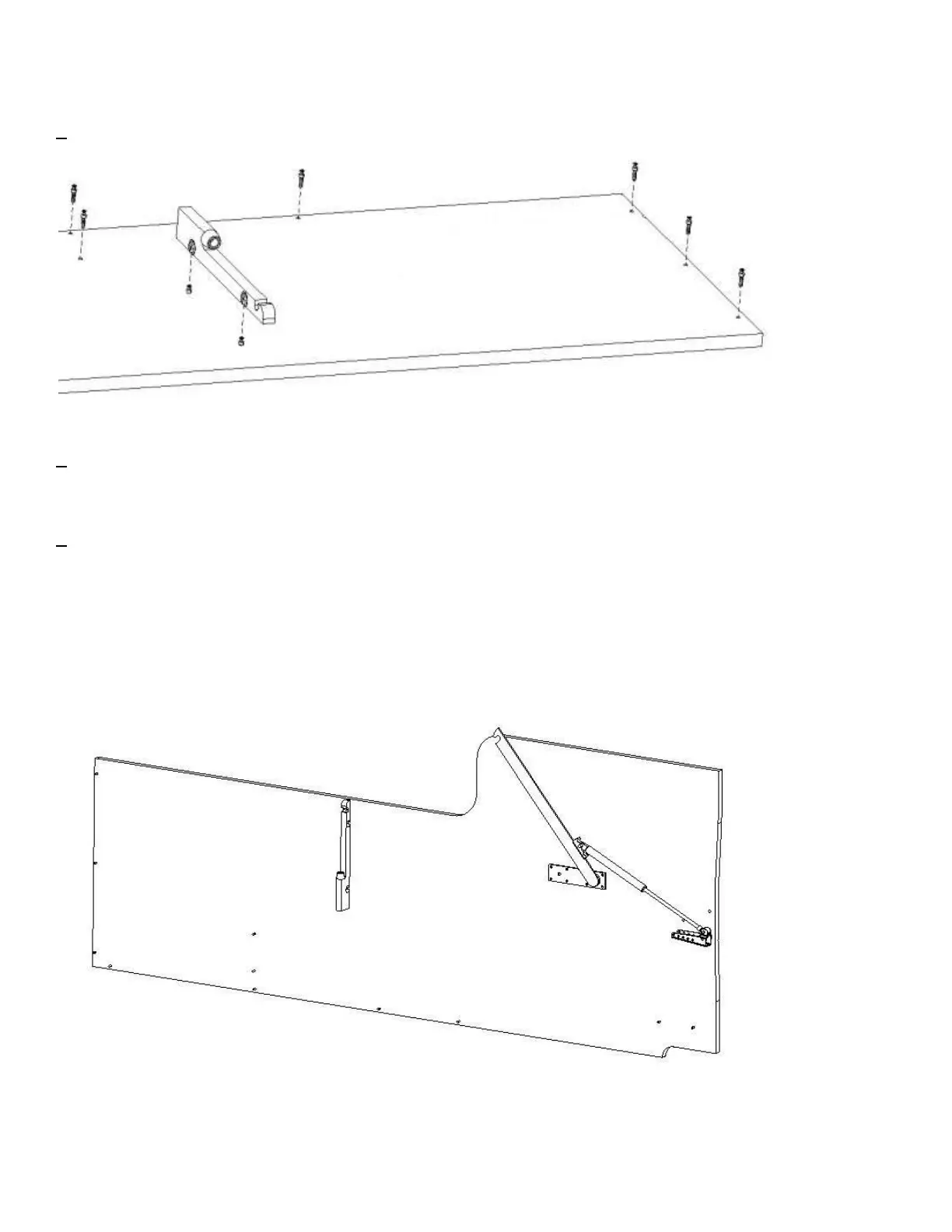

1 Lay bed body sides on the floor.
2 Attach CAM LOCK PINS in ø5mm holes, and fasten STOP & LOCK, using Philips PZ2
screwdriver.
3 Stand body sides on back edge and attach mechanism arms, with 1/4’’-20 FH bolts. Use
#3 Robertson on bolts and 7/16’’or 11mm wrench for nuts. Tighten until bolt head is
flush. Cover bolt heads with colored tabs.
