SUMMARY
TECHNICAL SPECATION
STANDARD IEC 61053-21(IEC61036) DL/T645-2007
NOMINAL VOLTAGE 120/220/230/240V(0.8UN-1.15Un)
BASIC CURRENT(Ib2) 5A
MAXIMUM CURRENT 65A
MINIMUM CURRENT 0.02A
FREQUENCY 50Hz or 60Hz
CONSUMPTION <2W/10VA
ACCURACY CLASS 1
DISPLAY 5+1 DIGITS

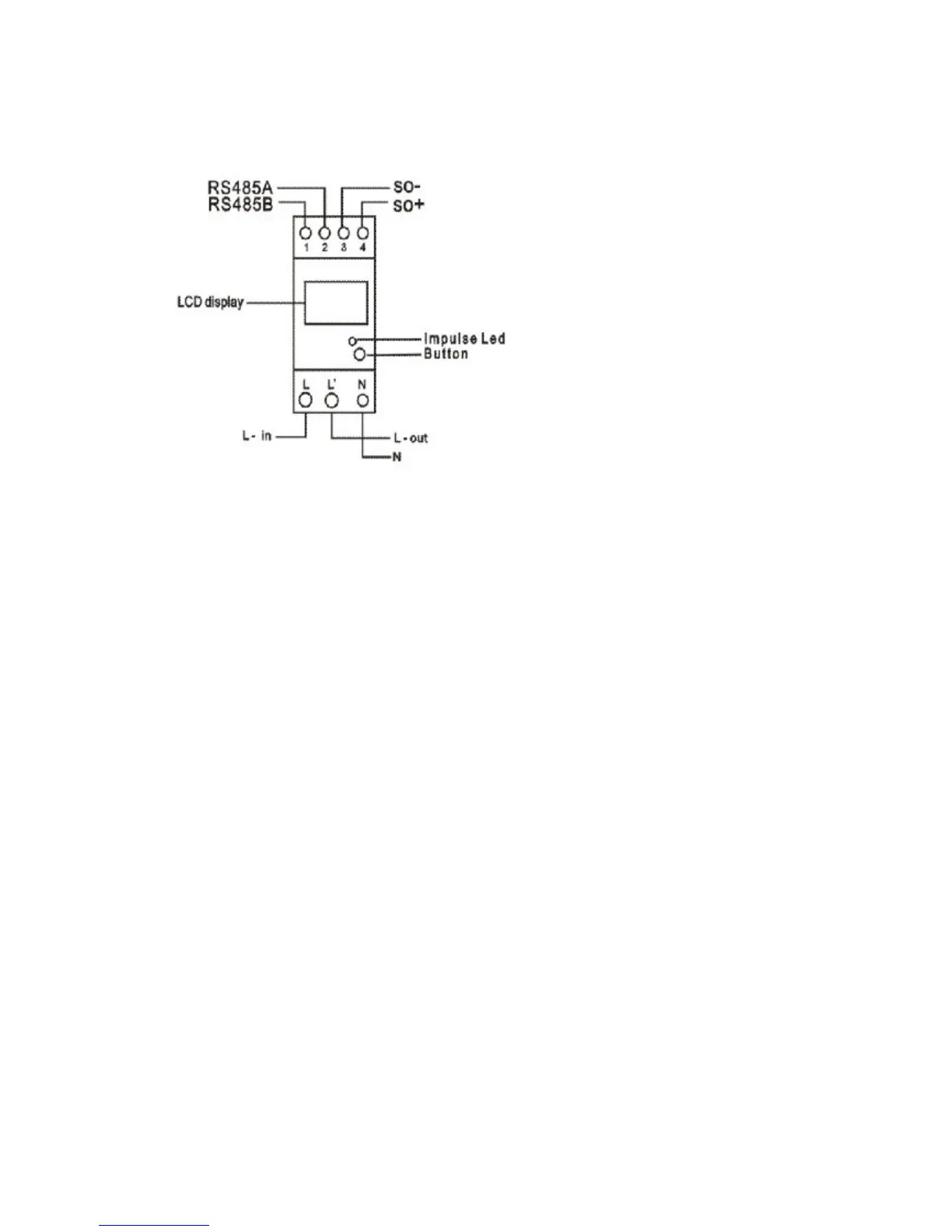

INTERFACE OPEN COLLECTOR OUTPUT(SO)
18
~
27V 27mA
IMPULSES IMPULSE LENGTH≥30ms
(as per DIN43684)
