HIKVISION DS-2CD2032-I User Manual

Quick Operation Guide of Network Camera
29
2) Edit the modifiable network parameters, e.g. IP address and port number.
3) Enter the password of the admin account of the device in the Password field and click
to save the changes.

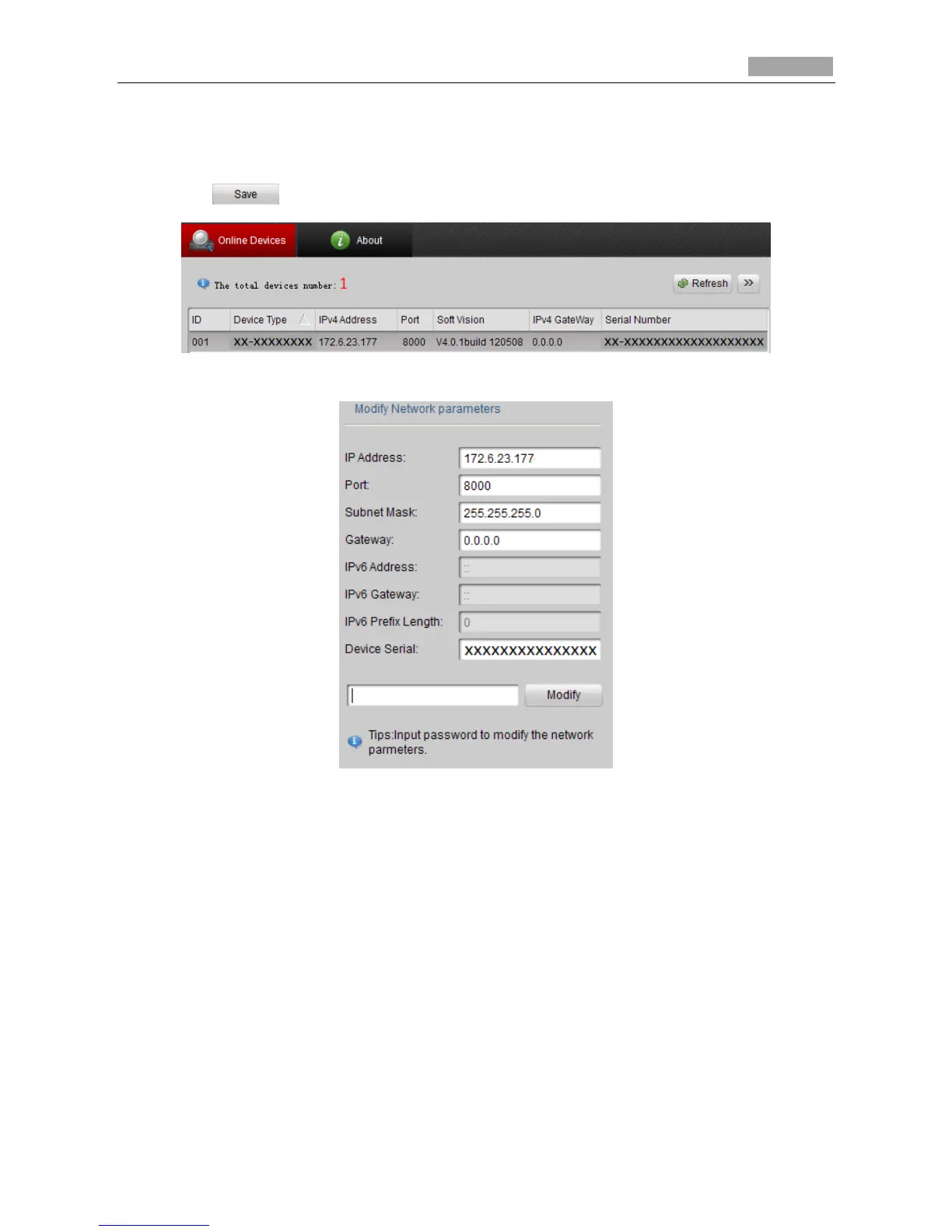

Figure 2-3 Select a Device
Figure 2-4 Modify Network Parameters
3. You can enter the IP address of network camera in the address field of the web browser to view
the live video.
Note:
 The default value of the IP address is “192.0.0.64”. The default user name is “admin”, and
password is “12345”.
 For accessing the network camera from different subnets, please set the gateway for the
network camera after you log in.

HIKVISION DS-2CD2032-I Specifications

General

Type	IP security camera
PTZ control	No
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Form factor	Bullet
Mounting type	Wall
Product color	White
International Protection (IP) code	IP66
Total megapixels	3 MP
Maximum resolution	2048 x 1536 pixels
Supported video modes	1080p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA)
Camera shutter speed	0.04 s
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Zoom capability	-
Focal length range	4 - 12 mm
LED type	IR
Night vision distance	30 m
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Ethernet LAN (RJ-45) ports	1
AC input voltage	12 V
Power source type	PoE
Power consumption (max)	7 W
Power consumption (typical)	5 W
Operating temperature (T-T)	-30 - 60 °C

Weight and Dimensions

Depth	76.9 mm
Width	60.4 mm
Height	139.2 mm
Weight	500 g
