HIKVISION DS-2CD2355FWD-I User Manual

Network Camera User Manual
145
4. Click Save to save the settings.
5. Go to Capture Parameters tab to configure the capture parameters.
(1) Check the Enable Timing Snapshot checkbox to enable continuous
snapshot.
(2) Select the picture format, resolution, quality and capture interval.
(3) Check the Enable Event-triggered Snapshot checkbox to enable
event-triggered snapshot.
(4) Select the picture format, resolution, quality, capture interval, and capture
number.

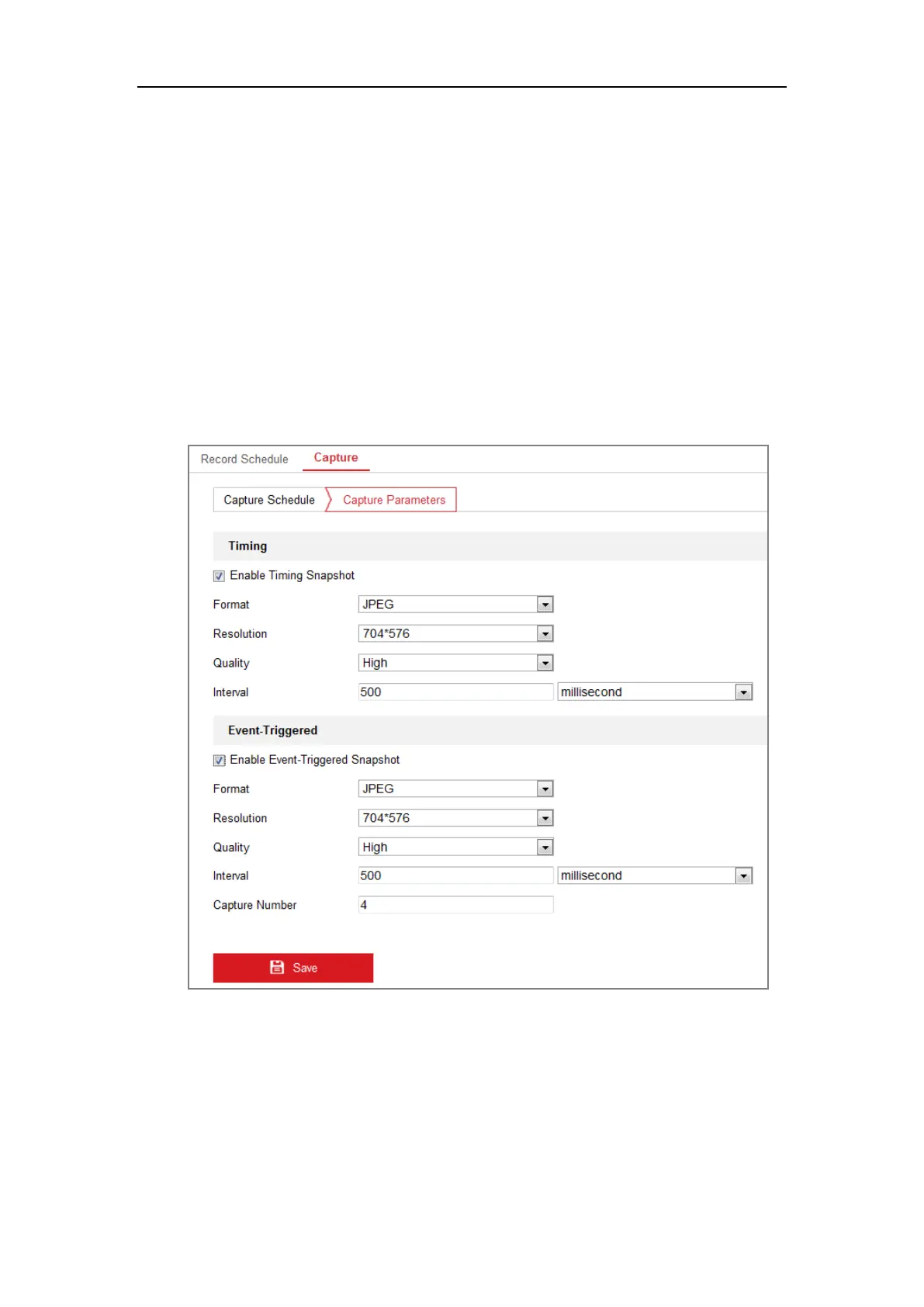

Figure 11-5 Set Capture Parameters
6. Set the time interval between two snapshots.
7. Click Save to save the settings.

HIKVISION DS-2CD2355FWD-I Specifications

General

Brand	HIKVISION
Model	DS-2CD2355FWD-I
Category	Security Camera
Language	English
