Installation Manual of Network Camera
102

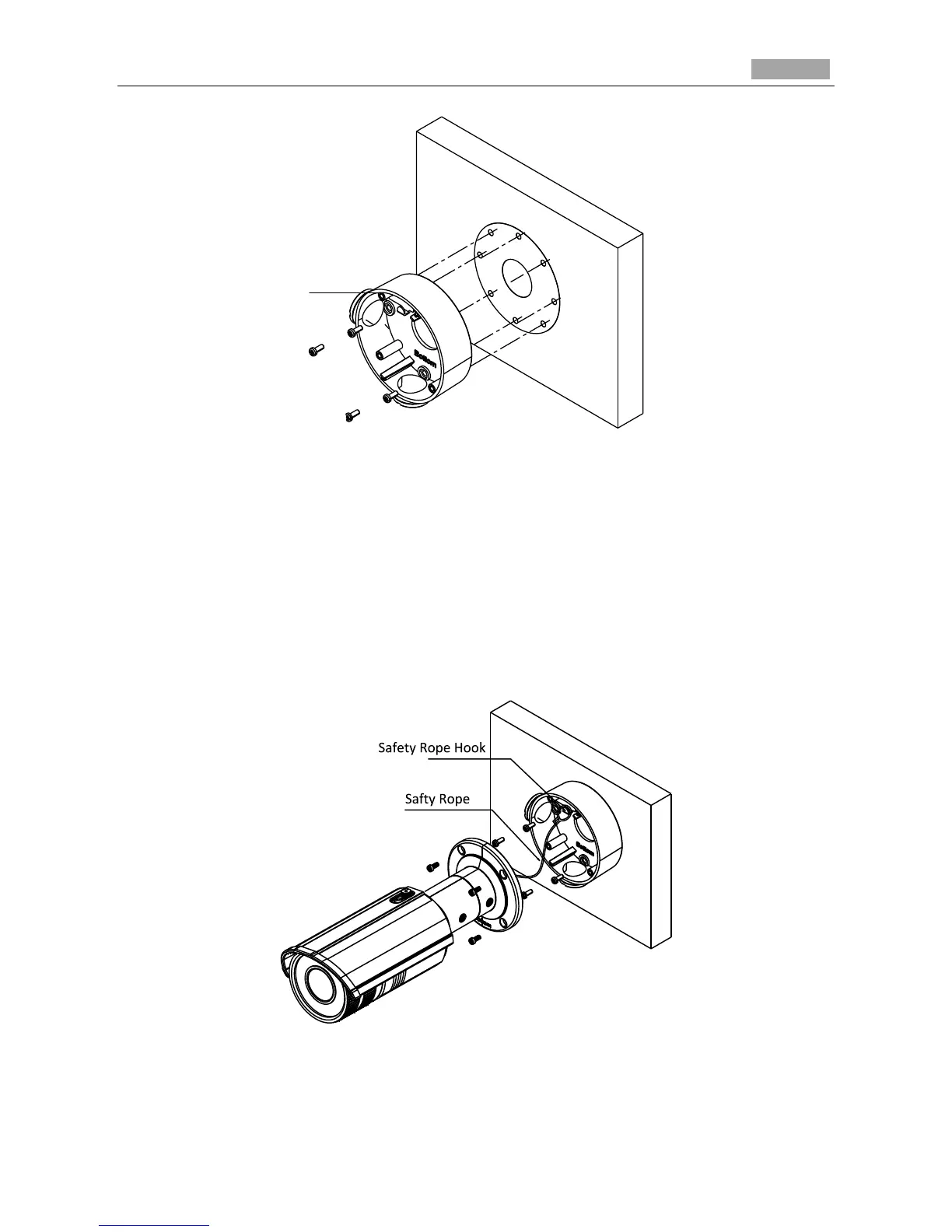

Figure 4-36 Install the Junction Box
4. Route the cables of the camera.
Route the cables through the junction box and the cable hole if there is a cable hole
drilled on the ceiling.
Route the cables through the side outlet of the junction box to the surface of the ceiling if
there is no cable hole drilled on the ceiling.
5. Hook the camera to the junction box with the safety rope.
6. Tighten the screws to fix the camera to the junction box.
Figure 4-37 Fix the Camera to the Junction Box
7. Adjust the camera to the desired surveillance angle and then tighten the screws on bracket to
fix the camera.
Junction Box
