HIKVISION DS-2CD2732F-I Installation Manual

Installation Manual of Network Camera
113

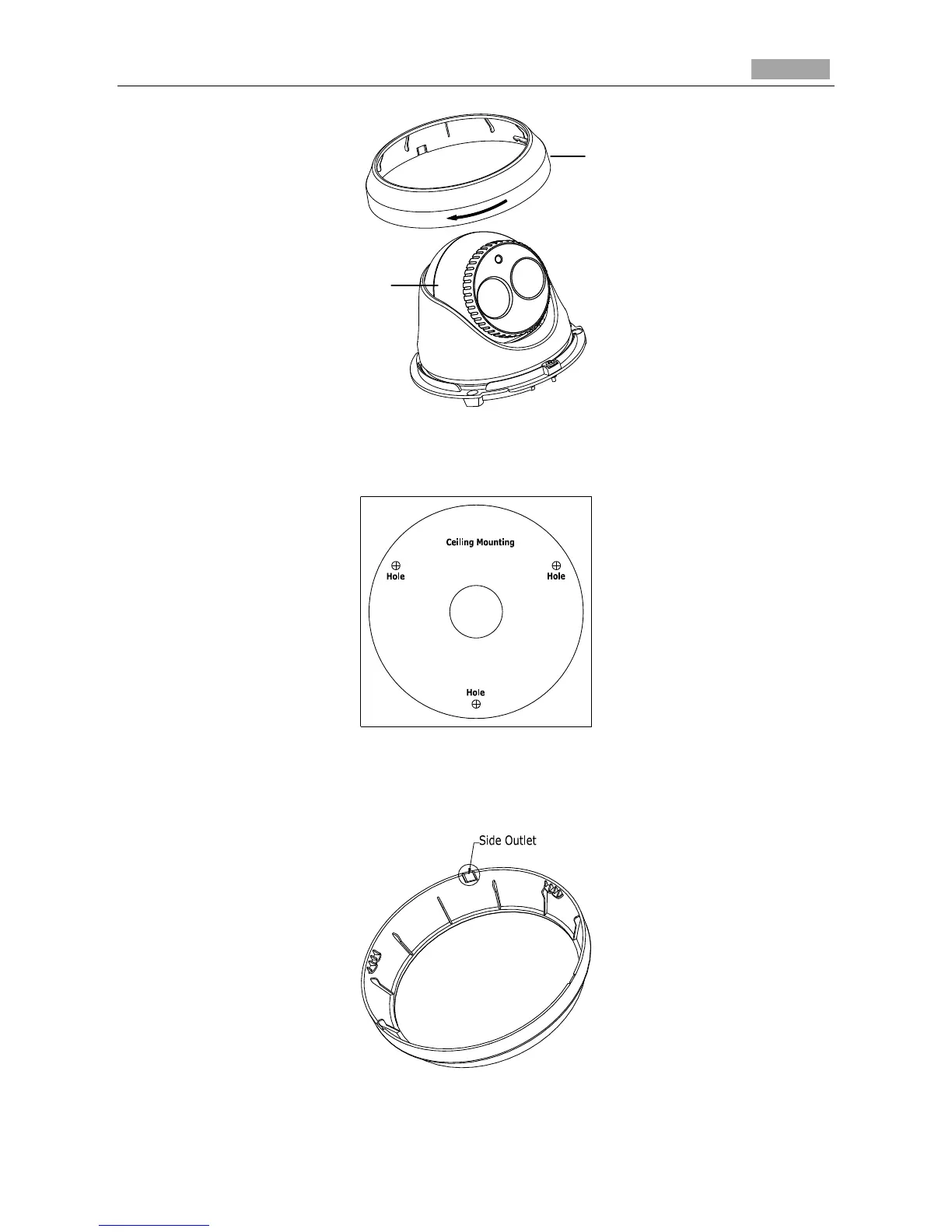

Figure 5-2 Dissemble the Camera
2. Drill the screw holes and the cable hole on the ceiling according to the drill template.
Figure 5-3 The Drill Template
There are two cable outlet methods. One is to route the cables through the cable hole, and the other is
to route the cables through the side outlet shown below.
Figure 5-4 Side Outlet
Trim Ring
Dome Drive
Lo-Call 1890 866 900
www.cctvireland.ie
shop@cctvireland.ie

HIKVISION DS-2CD2732F-I Specifications

General

Type	IP security camera
PTZ control	Yes
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Dome
Mounting type	Ceiling
Product color	White
Protection features	Vandal proof
International Protection (IP) code	IP66
Total megapixels	3 MP
Maximum resolution	2048 x 1536 pixels
Supported video modes	1080p, 720p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	1280 x 960, 1280 x 720 (HD 720)
Pan range	0 - 360 °
Tilt angle range	0 - 75 °
Angle of rotation	360 °
Camera shutter speed	1/30 - 1/100000 s
Minimum illumination	0.095 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Zoom capability	-
Focal length range	- mm
Password protection type	User
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	64 GB
LED type	IR
Night vision distance	20 m
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, ICMP, IGMP, SNMP, FTP, 802.1X, QoS, HTTPS
Ethernet LAN (RJ-45) ports	1
DC output voltage	+12V
Power source type	PoE
Power consumption (max)	5.5 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Height	99.9 mm
Weight	1000 g
Diameter	140 mm
