Network Camera User Manual
127
Intrusion Detection
2. Check the checkbox of Enable to enable the function.
3. Select a region number from the drop-down list of Region.
Region: A pre-defined vertexes area on the live view image. Targets, such as,
people, vehicle or other objects, who enter and loiter in the region will be
detected and trigger the set alarm.

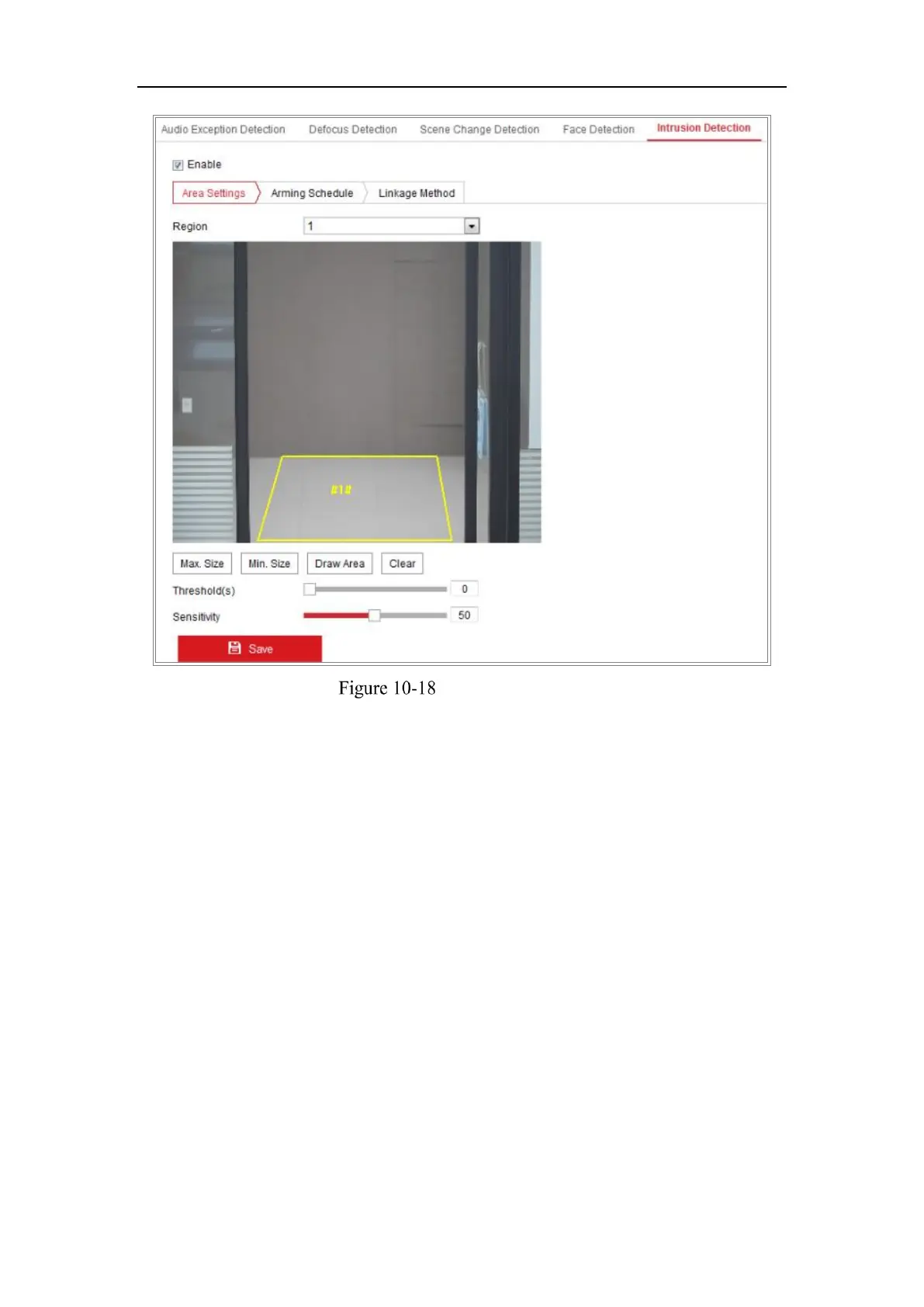

4. Click Area Settings tab and click Draw Area button to start the region drawing.
5. Click on the live video to specify the four vertexes of the detection region, and
right click to complete drawing.
6. Set the Max. Size and Min. Size for valid targets. Targets smaller or larger than
the valid target size are not able to trigger detection.
Max. Size: The maximum size of a valid target. Targets with larger sizes would
not trigger detection.
Min. Size: The minimum size of a valid target. Targets with smaller sizes would
To Next Page
