User Manual of Network Fisheye Camera
83

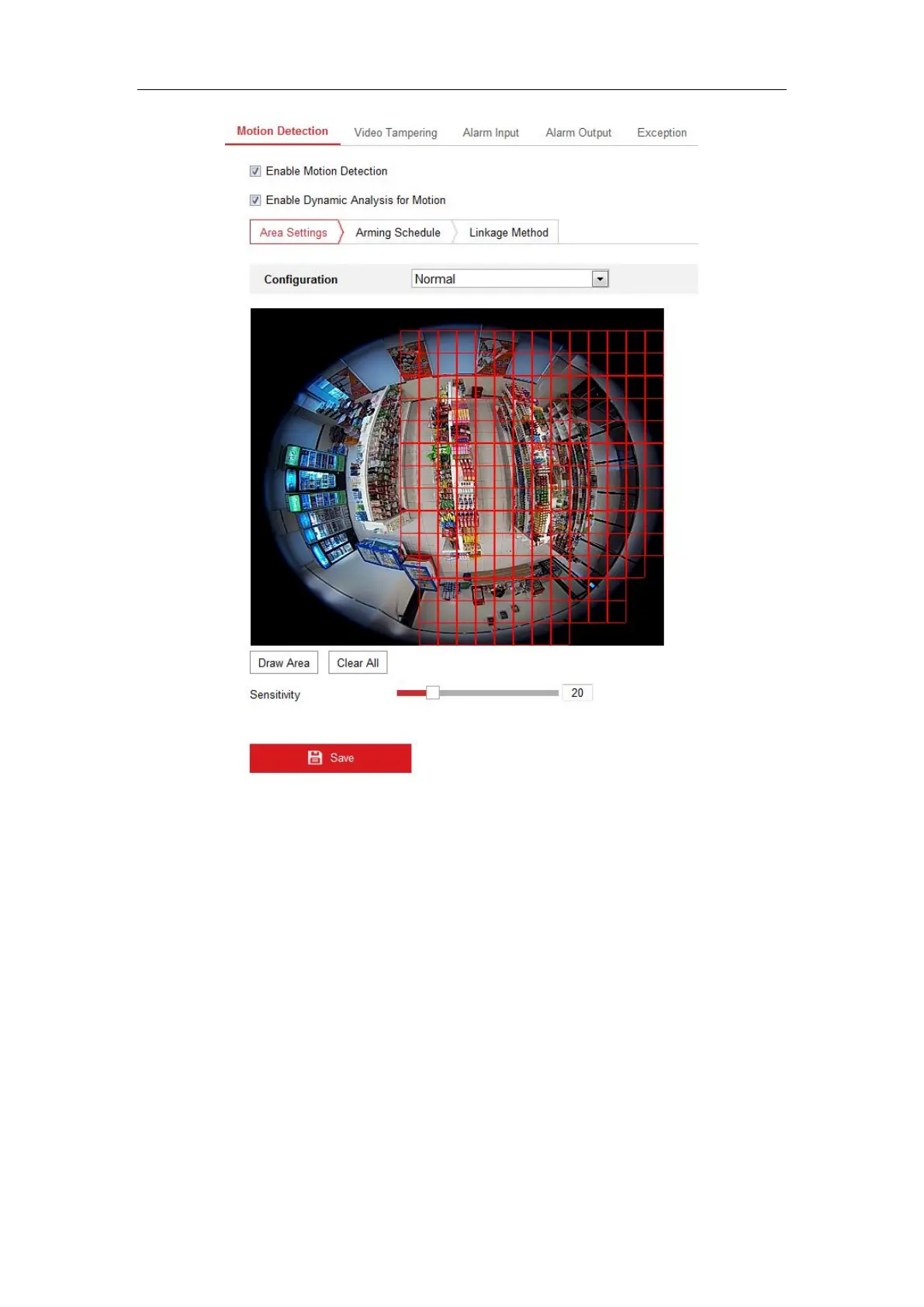

Figure 9-1 Motion Detection Settings
2. Check the checkbox of Enable Motion Detection.
3. (Optional) Check the checkbox of Enable Dynamic Analysis for Motion if
you want to mark the detected objects with green rectangles on the live view
window.
Note: You can go to Configuration > Local Configuration > Live View
Parameters, and then select Disable for Rules if you don’t want the detected
objected displayed with the rectangles.
4. Click Draw Area. Click and drag the mouse on the live video to draw a
motion detection area. Click Stop Drawing to finish drawing one area.
5. (Optional) Click Clear All to clear all of the areas.
