1.2.4 Dome Camera IV
Camera description:

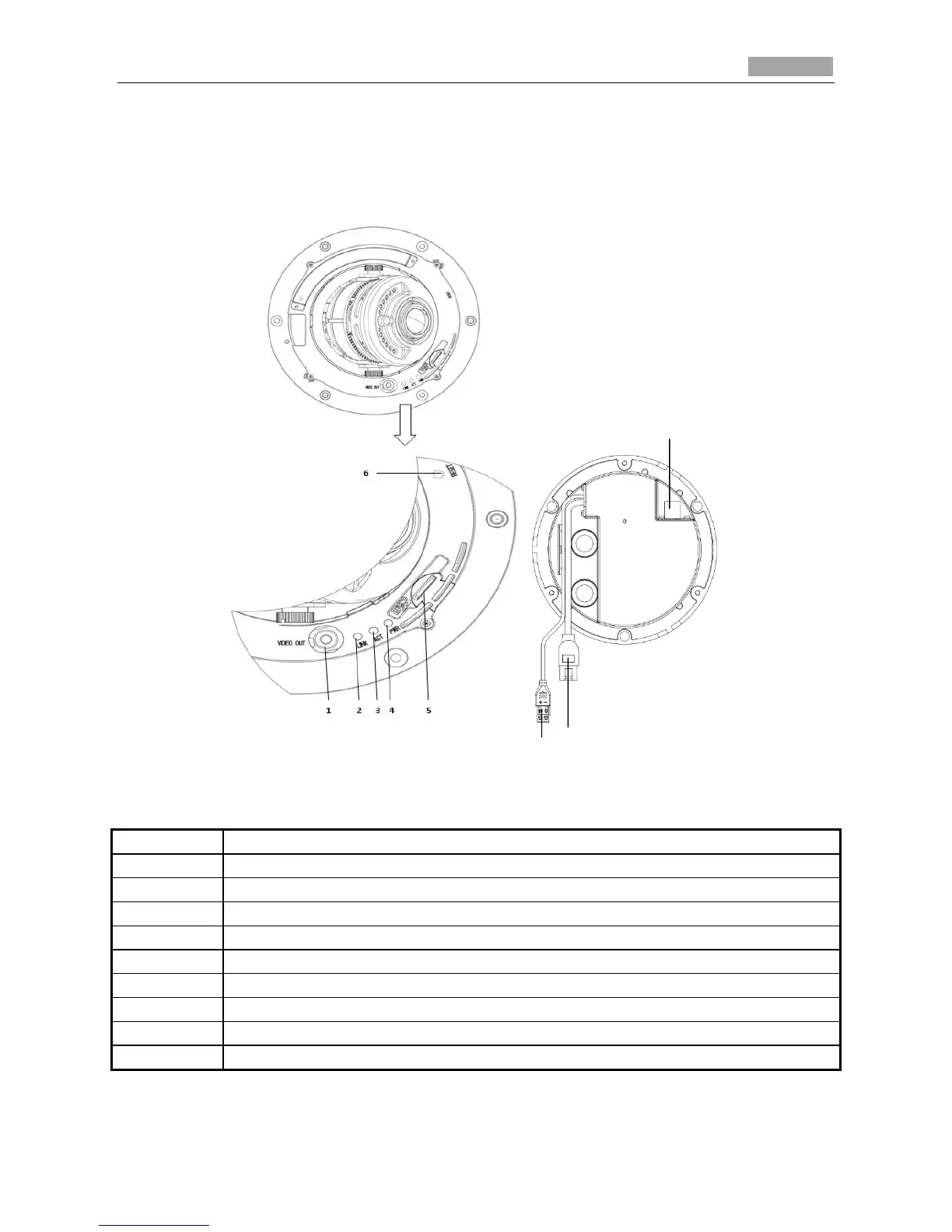

Figure 1-18 Overview
Table 1-10 Description
No.
Description
1
Video output interface
2
LINK: Indicator is solid yellow when network is connected.
3
ACT: Indicator flashes blue when network connection is functioning properly.
4
PWR: Indicator is solid red when the device is powered on.
5
Micro SD slot
6
RESET: Reset button
7
10M/100M self-adaptive Ethernet interface
8
Power supply interface
9
Extended interface
Notes:
 The extended interface can be connected to alarm input/output interface, audio input/output
7
8
9
