HIKVISION DS-2CD864-EI3

Installation Manual of Network Camera
60
10
9

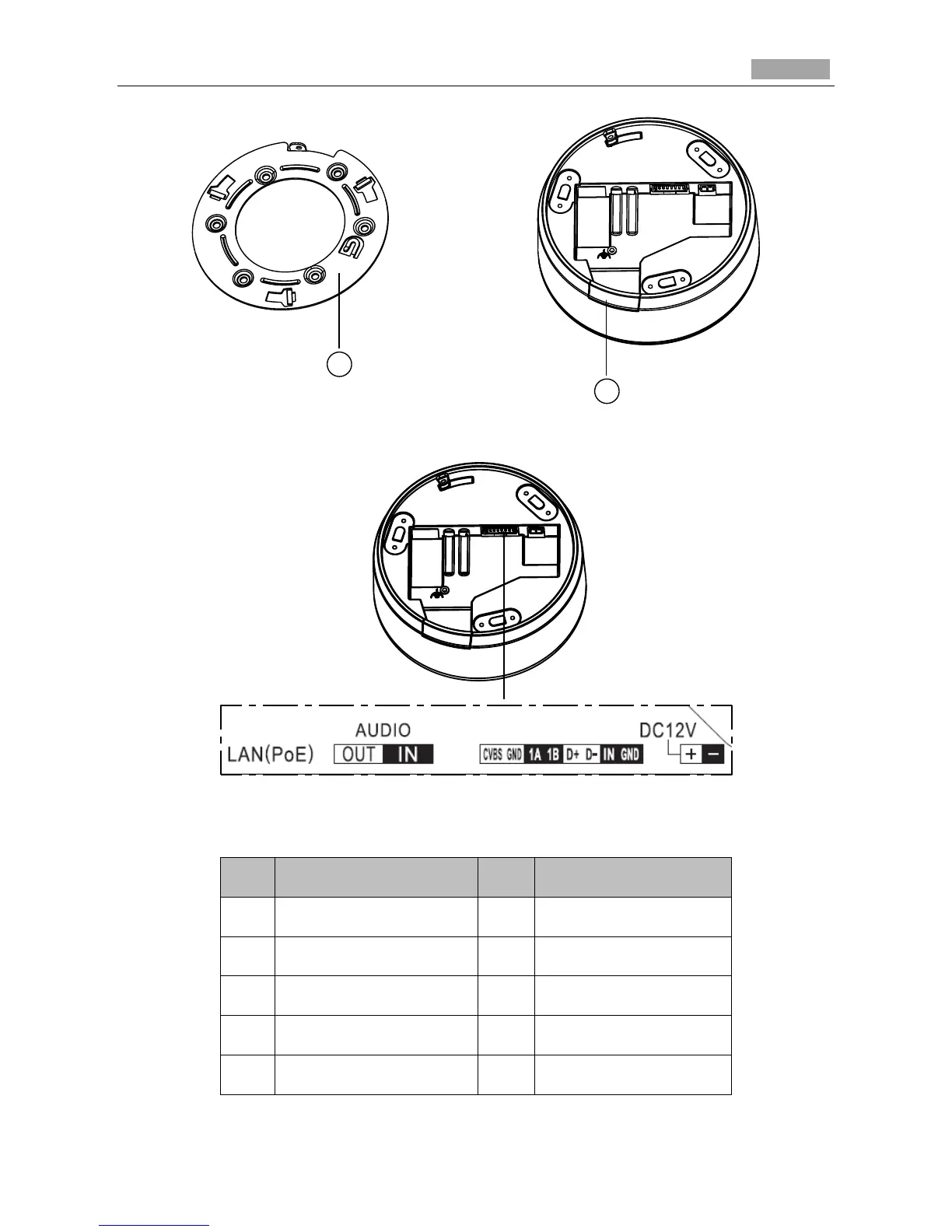

Figure 3-79 Overview (3)
Figure 3-80 Overview (4)
Table 3-7 Description of Overview (2~3)
No.
Description
No.
Description
1
Black Liner
2
Bubble
3
Lens
4
BNC Interface
5
Reset
6
Status Indicator
7
Test Serial Port
8
Micro SD Card Slot
9
Adapter Plate
10
Side Outlet
Table 3-8 Description of Overview (4)
