HIKVISION DS-2CD864-EI3 Installation Manual

Installation Manual of Network Camera
62
Side Outlet

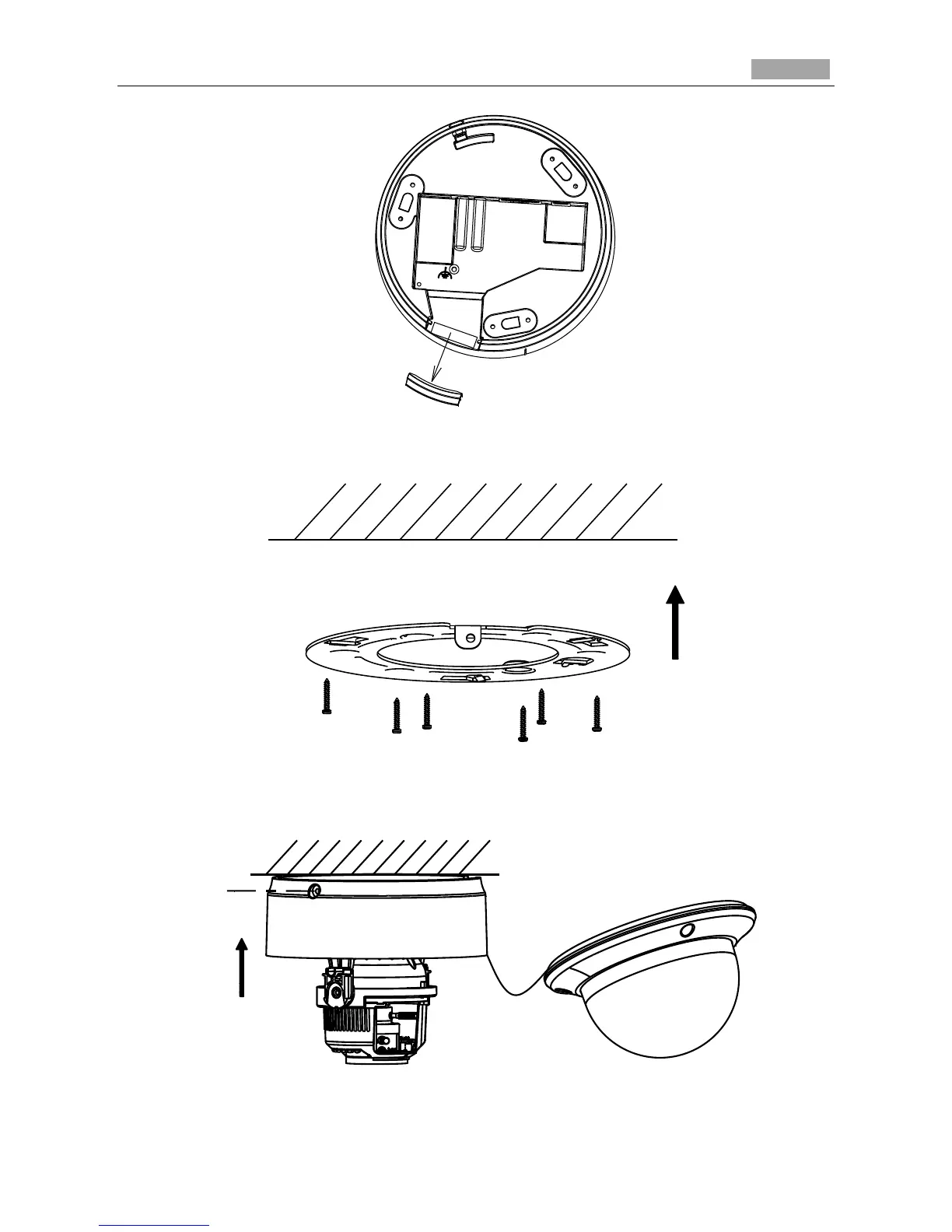

Figure 3-82 Side Outlet
2. Fix the adapter plate to the ceiling with the supplied screws.
Figure 3-83 Install the Adapter Plate
3. Align the mounting base with the adapter plate and route the mounting base anticlockwise to get it
fitted with the adapter plate, and then fix it by tightening the lock screw.
Lock
Screw
Figure 3-84 Install the Mounting Base
Lo-Call 1890 866 900
www.cctvireland.ie
shop@cctvireland.ie

HIKVISION DS-2CD864-EI3 Specifications

General

Brand	HIKVISION
Model	DS-2CD864-EI3
Category	Security Camera
Language	English
