HIKVISION DS-2CD864-EI3 Installation Manual

Installation Manual of Network Camera
87

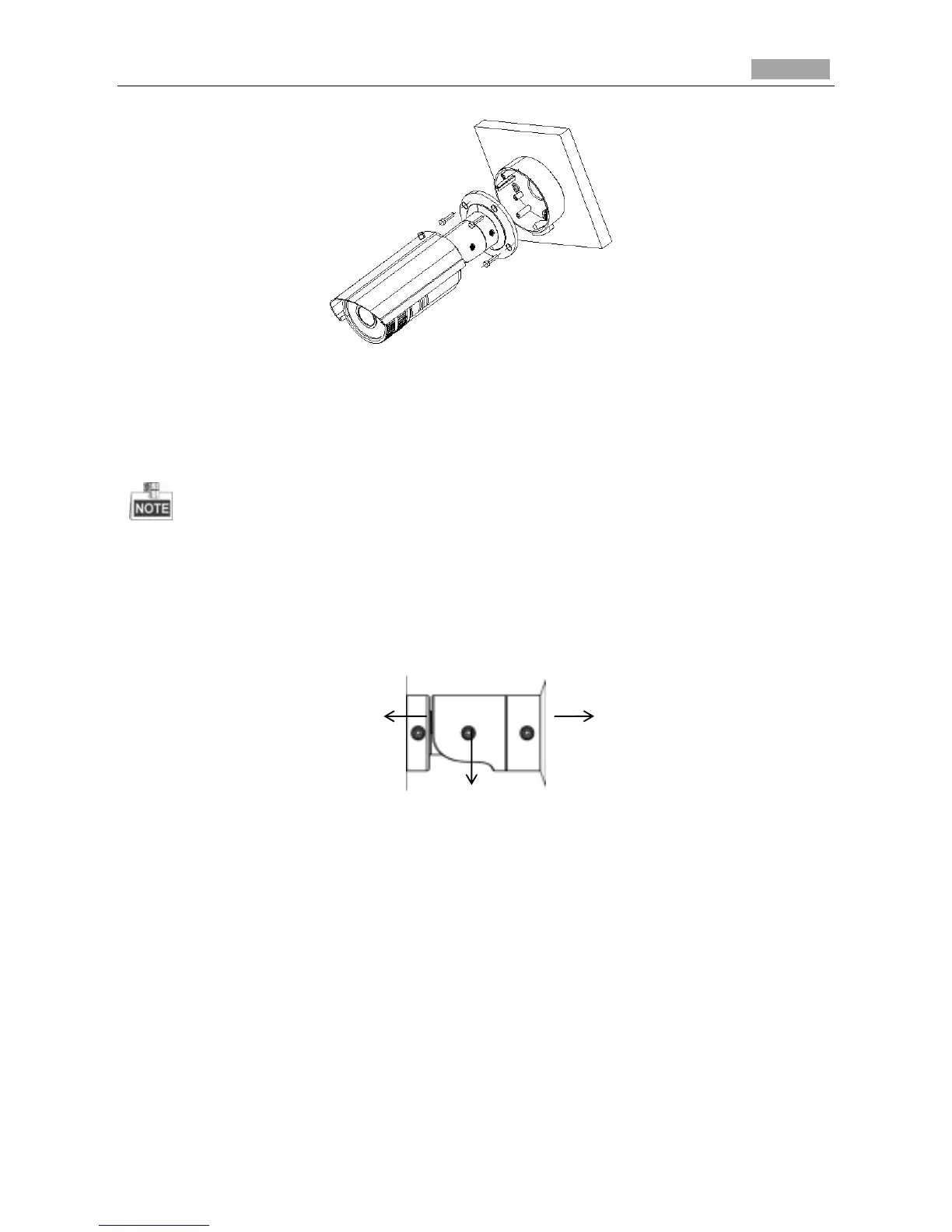

Figure 4-10 Fix the Camera
3. View the image of the camera over the network.
4. Loosen the screws on the bracket slightly.
Please loosen the screws slightly until you can adjust the camera and do not remove the screws
from the bracket.
5. Adjust the camera to the desired surveillance angle and then tighten the screws on bracket to fix
the camera.
Figure 4-11 Adjust Monitoring Angle
6. Loosen the lock screw on the sun shield and slide the sun shield until you can remove it. Remove
the sun shield.
Rotation
Screw
Panning
Screw
Tilting
Screw
