HIKVISION DS-2CD883F-E

Installation Manual of Network Camera
117
Chapter 6 Cube Camera Installation
6.1 Type I Cube Camera
6.1.1 Camera Description

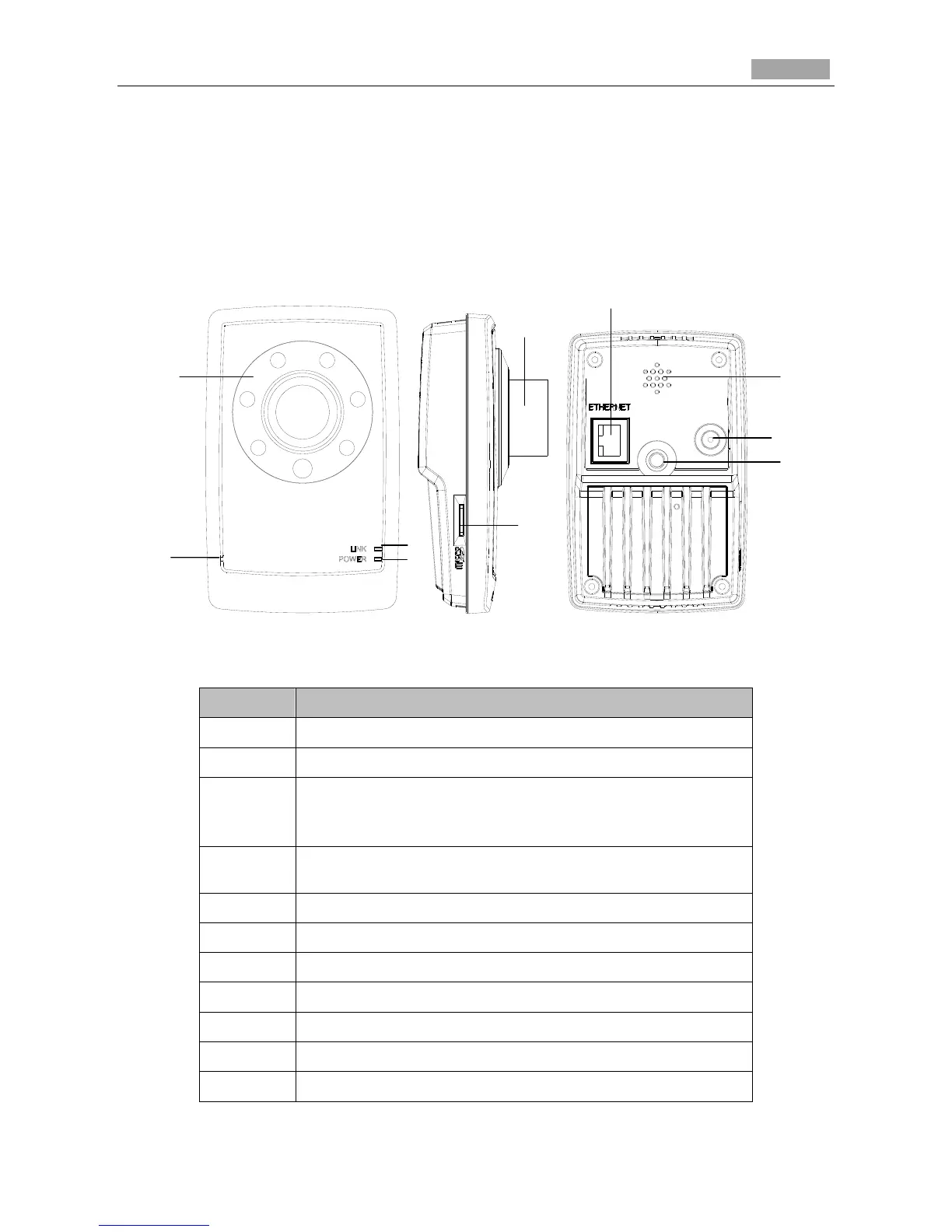

Figure 6-1 Overview
Table 6-1 Description
No.
Description
1
IR LED
2
Microphone
3
LINK: Network Status LED Indicator.
LED indicator is solid yellow when network connection is
functioning properly.
4
Power LED Indicator. It is solid red when power is applied to
the unit.
5
Lens
6
Micro SD Card Slot
7
Ethernet: 10M / 100M self-adaptive Ethernet Interface
8
Speaker
9
Power Supply Interface
10
Screw hole, used to fix the camera to the bracket
11
Reset Button
1
2
3
4
6
8
9
5
0
10
7
