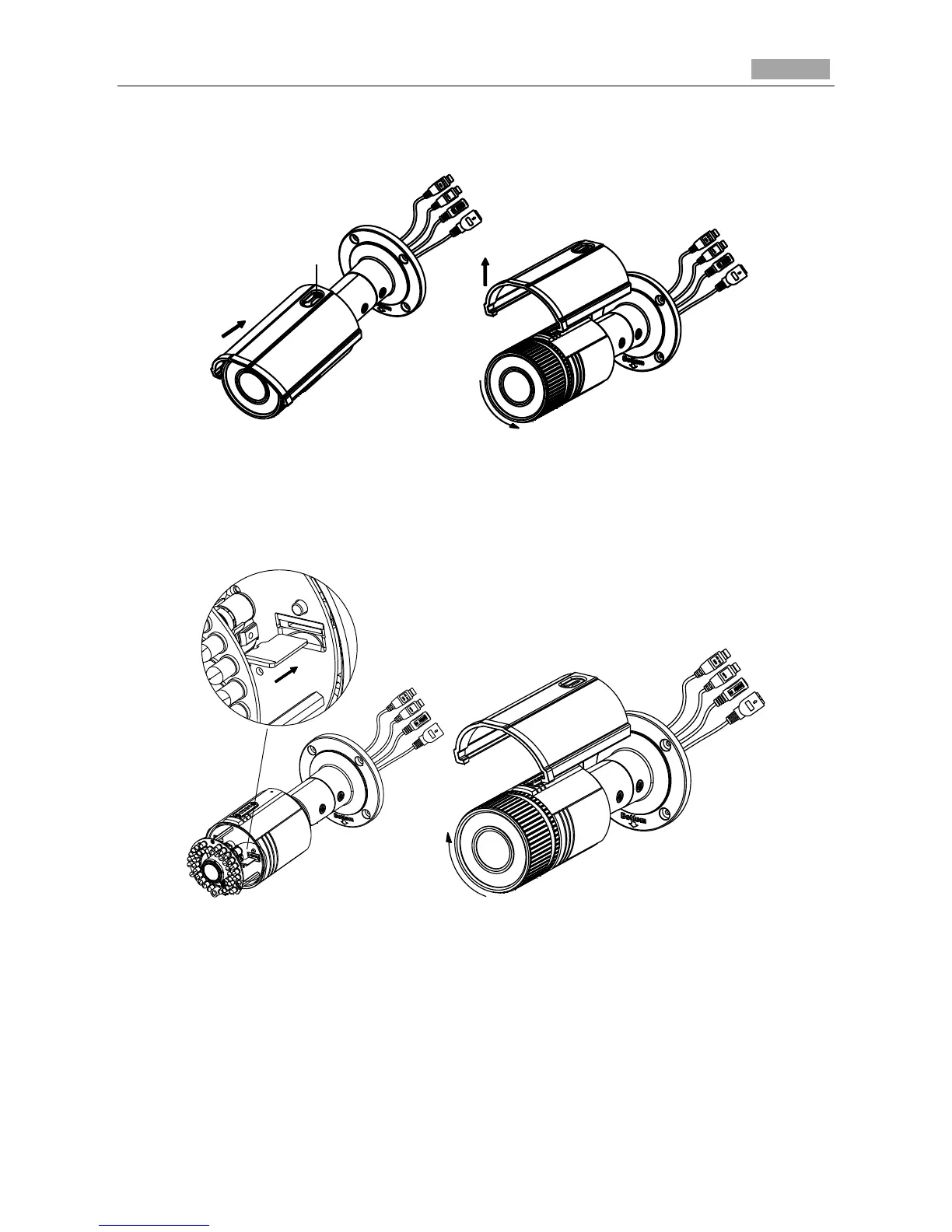

2. Remove the sun shield according to the arrow direction as shown in Figure 4-25 (right).
3. Remove the front cover by rotating it counterclockwise as shown in Figure 4-25 (right).
Figure 4-25 Disassemble the Camera
4. Insert the micro SD card to the micro SD card slot.
5. Rotate the front cover clockwise to install the sun shield according to the arrow direction as shown
in Figure 4-26(right).
Figure 4-26 Install the SD Card
6. Slide the sun shield according to the arrow direction as shown in Figure 4-27(left).
7. Tighten the lock screw on the sun shield.
