Ceiling mounting and wall mounting are similar.
Following steps take ceiling mounting as an example.
Steps:
1. Paste the drill template (supplied) to the place
where you want to install the camera.
2. (Optional) For cement ceiling, drill the screw holes
with a 5.5 mm drill and insert the supplied wall
plugs.
Screw
Hole
Screw
Hole
Screw
Hole
templat e
Cable
Hole

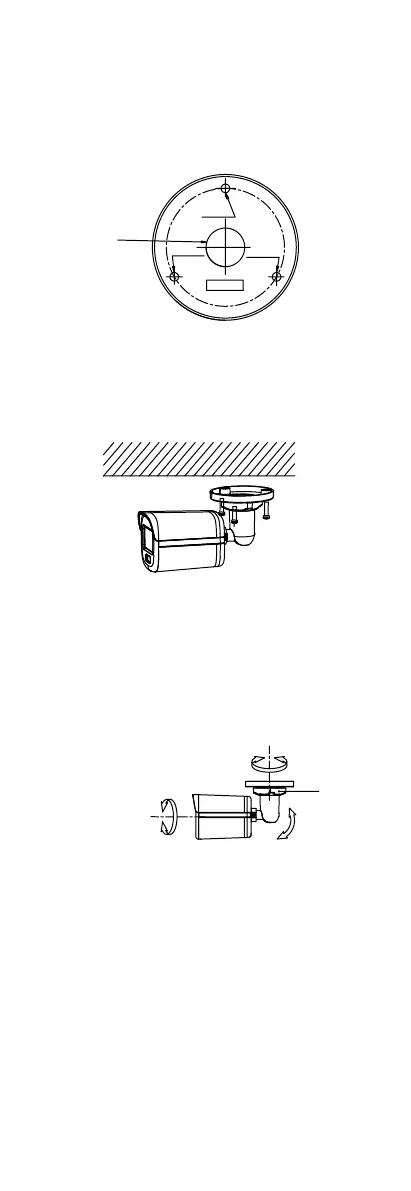

Figure 2-1 Drill Template
3. (Optional) Drill the cable hole, when the cables are
routed through the ceiling.
4. Align the screw holes in the bracket to the ceiling,
and secure the camera with three PA4 × 25 screws
(supplied).
Figure 2-2 Secure the Camera to the Ceiling
5. Connect the power cord and video cable.
6. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, turn the trim ring counterclockwise to loosen it
and adjust the positions according to the figure
below.
Rotation Position
[0° to 360°]
Tilt Position
[0° to 90°]
Pan Position
[0° to 360°]
Trim Ring
Figure 2-3 3-Axis Adjustment
7. Turn the trim ring clockwise to lock the positions.
2.1.2 Ceiling/Wall Mounting with Junction Box
Before you start:
 You need to purchase a junction box in advance.
 Ceiling mounting and wall mounting are similar.
Following steps take wall mounting as an example.
Steps:
1. Paste the drill template for junction box to the place
where you want to install the camera.
2. (Optional) For cement wall, drill the screw holes
with a 5.5 mm drill and insert the supplied wall
plugs.
