HIKVISION DS-2CE10HFT-F28

UM ColorVu DS-2CExxHFT-Fxx 122919NA 6
1 Introduction
1.1 Product Features
The main features are as follows:
• High performance CMOS sensor
• OSD menu with configurable parameters
• 24-hour color image
• Smart light
• 3-axis adjustment
1.2 Overview
1.2.1 Overview of Type I Camera

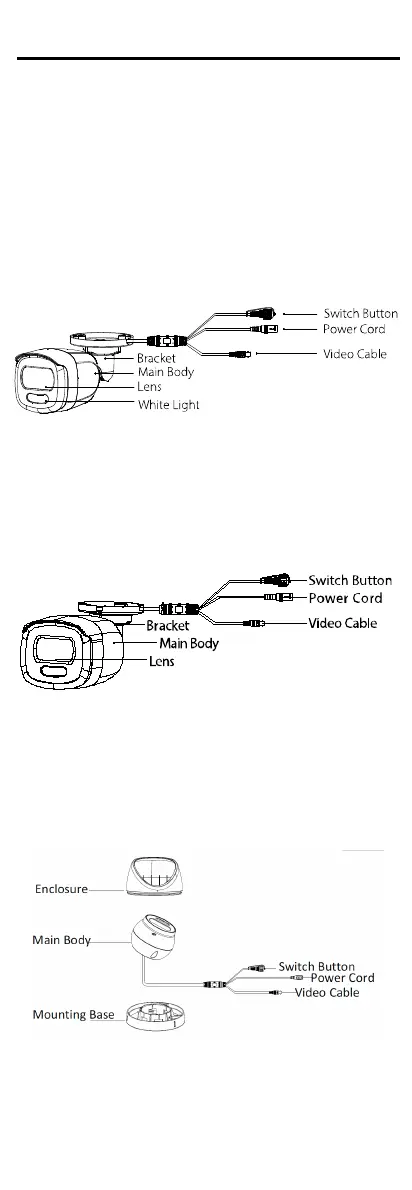

Figure 1, Type 1 Camera Overview
NOTE: Press and hold the switch button for five
seconds to switch the video output. Four kinds
of video outputs are available: TVI, AHD, CVI, and
CVBS.
1.2.2 Overview of Type II Camera
Figure 2, Type II Camera Overview
NOTE: Press and hold the switch button for five
seconds to switch the video output. Four kinds
of video outputs are available: TVI, AHD, CVI, and
CVBS.
1.2.3 Overview of Type III Camera
Figure 3, Type III Camera Overview
NOTE: Press and hold the switch button for five
seconds to switch the video output. Four kinds
of video outputs are available: TVI, AHD, CVI, and
CVBS.
