2. Drill screw holes and the cable hole (optional) in the
ceiling/wall according to the holes of the drill
template.

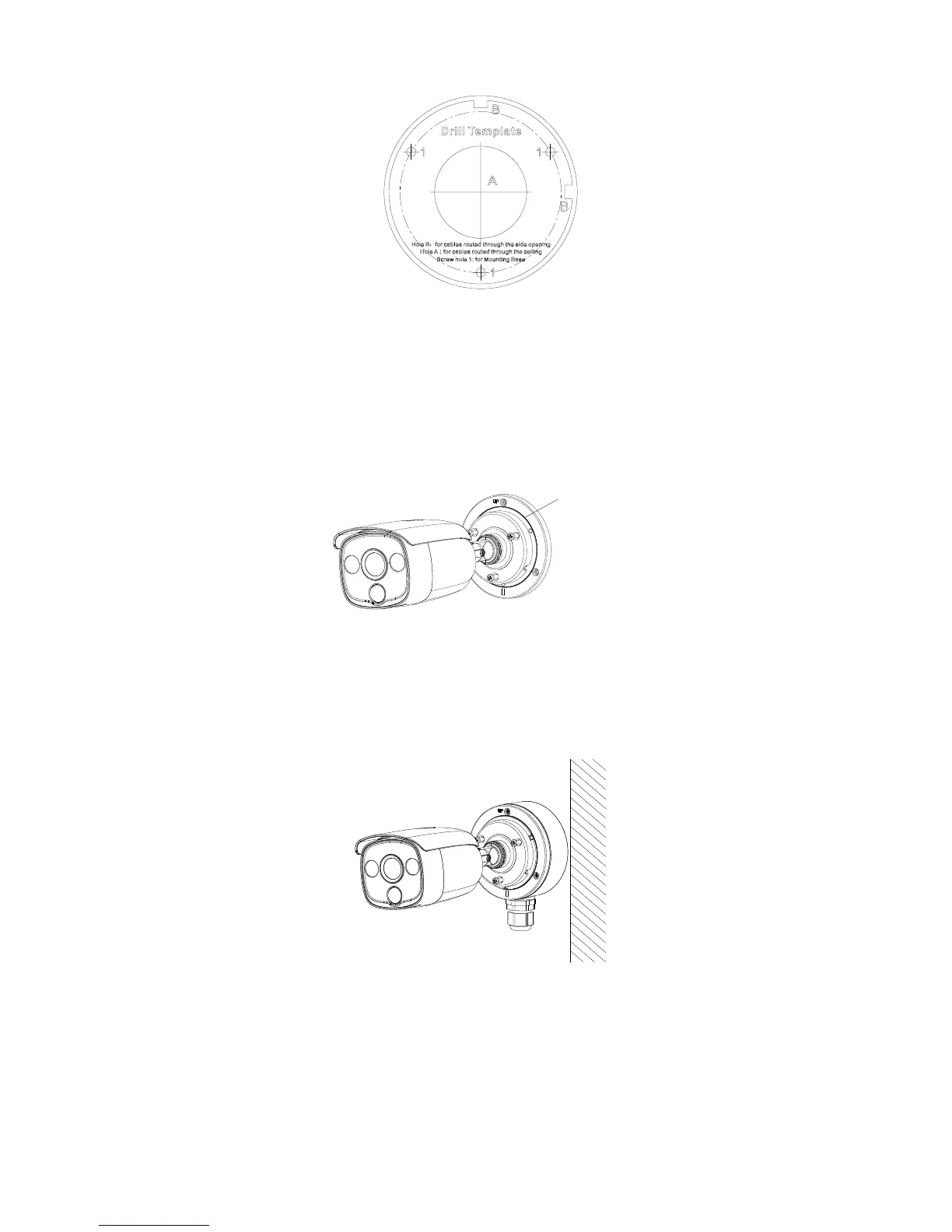

Figure 2-11 Drill Template
Note:
Drill the cable hole, when adopting ceiling outlet to
route the cable.
3. Take apart the junction box, and align the screw
holes of the bullet camera with those on the
Junction box’s cover.
4. Fix the camera on the junction box’s cover with
three supplied screws.
Figure 2-12 Install the Junction Box
5. Secure the junction box’s body with supplied screws
on the ceiling/wall.
6. Route the cables through the bottom cable hole, or
the side cable hole of the junction box.
7. Combine the junction box cover with its body with
supplied screws on the junction box’s cover.
Figure 2-13 Combine the Junction Box’s Cover with its
Body
8. Repeat the step 5 and 6 of 2.2.1 Ceiling/Wall
Mounting without Junction Box to complete the
installation.
