HIKVISION DS-2CE11D8T-PIRL User Manual

3 Menu Description
Purpose:
Call the menu by clicking button on the PTZ Control
interface, or call the preset No.95.
Steps:

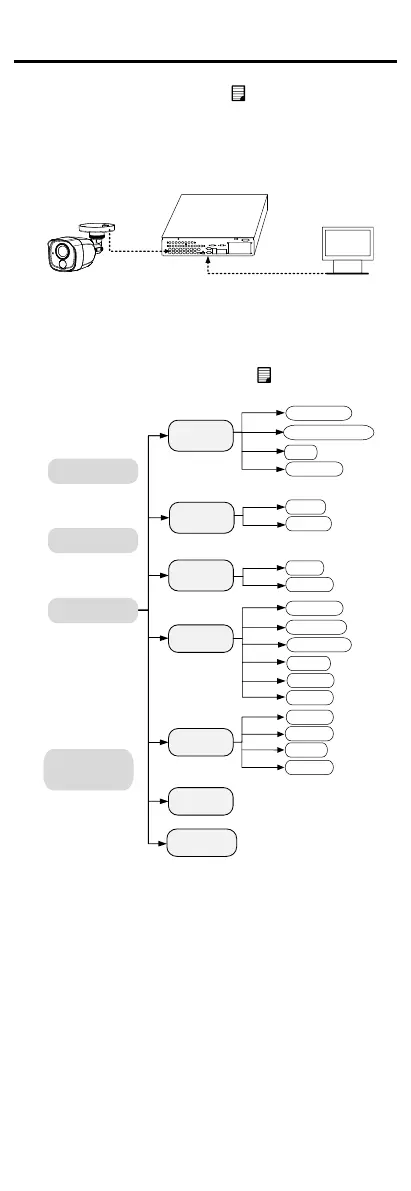

1. Connect the camera with the TVI DVR, and the
monitor, shown as the figure 3-1.
Camera
TVI DVR
Monitor
Figure 3-1 Connection
2. Power on the analog camera, TVI DVR, and the
monitor to view the image on the monitor.
3. Click PTZ Control to enter the PTZ Control interface.
4. Call the camera menu by clicking button, or call
the preset No. 95.
AE
AWB
BRIGHTNESS
MAIN MENU
FORMAT
DAY NIGHT
VIDEO
SETTING
FUNC
RESET
SAVE & EXIT
PRIVACY
EXPOSURE MODE
AGC
SENSE UP
MODE
RETURN
MODE
RETURN
CONTRAST
SHARPNESS
COLOR GAIN
3 DNR
MIRROR
RETURN
MOTION
CAM ID
RETURN
LANGUAGE
W-LIGHT
MODE
Figure 3-2 Main Menu Overview
5. Click the direction arrow to control the camera.
1). Click up/down direction button to select the
item.
2). Click Iris + to confirm the selection.
3). Click left/right direction button to adjust the
value of the selected item.
3.1 FORMAT
PAL (Phase Alternating Lines)
PAL is a color encoding system for analog television
used in broadcast television systems in most countries.
NTSC: (National Television System Committee)
NTSC is the analog television system that is used in
most of North America, parts of South America,
Myanmar, South Korea, etc.

HIKVISION DS-2CE11D8T-PIRL Specifications

General

Full HD	Yes
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Image quality adjustment	Brightness, Sharpness
Analog signal format system	NTSC, PAL
Fixed focal length	2.8 mm
Number of cameras	1
Pan range	0 - 360 °
White balance	ATW, Manual
Tilt angle range	0 - 180 °
Angle of rotation	360 °
Camera shutter speed	1/50000 - 1/25 s
Minimum illumination	0 lx
Type	CCTV security camera
Languages support	CHI (TR), ENG
Number of languages	2
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Sensor type	CMOS
Lens mount interface	M12
Interface	BNC
Built-in HDD	No
LED type	IR
Night vision distance	20 m
Form factor	Bullet
Mounting type	Ceiling/wall
Product color	White
Housing material	Metal
International Protection (IP) code	IP67
Operating temperature (T-T)	-40 - 60 °C
DC output voltage	12
Power source type	DC
Power consumption (max)	4.5 W
Power over Ethernet (PoE)	-

Weight and Dimensions

Depth	68 mm
Width	70 mm
Height	179.8 mm
Weight	345 g
