HIKVISION DS-2CE11D8T-PIRL User Manual

2. Drill screw holes and the cable hole (optional) in the
ceiling/wall according to the holes of the drill
template.

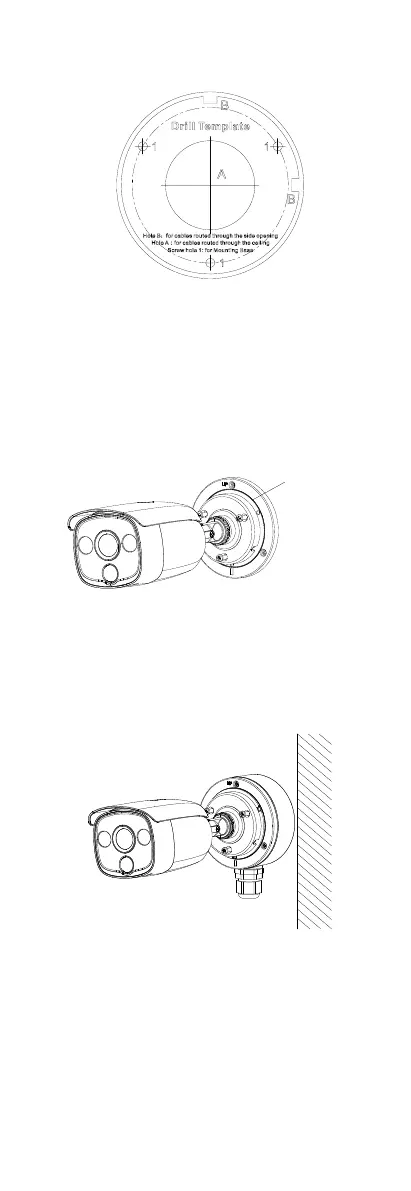

Figure 2-11 Drill Template
Note:
Drill the cable hole, when adopting ceiling outlet to
route the cable.
3. Take apart the junction box, and align the screw
holes of the bullet camera with those on the
Junction box’s cover.
4. Fix the camera on the junction box’s cover with
three supplied screws.
Junction Box
Cover
Figure 2-12 Install the Junction Box
5. Secure the junction box’s body with supplied screws
on the ceiling/wall.
6. Route the cables through the bottom cable hole, or
the side cable hole of the junction box.
7. Combine the junction box cover with its body with
supplied screws on the junction box’s cover.
Figure 2-13 Combine the Junction Box’s Cover with its
Body
8. Repeat the step 5 and 6 of 2.2.1 Ceiling/Wall
Mounting without Junction Box to complete the
installation.

HIKVISION DS-2CE11D8T-PIRL Specifications

General

Full HD	Yes
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Image quality adjustment	Brightness, Sharpness
Analog signal format system	NTSC, PAL
Fixed focal length	2.8 mm
Number of cameras	1
Pan range	0 - 360 °
White balance	ATW, Manual
Tilt angle range	0 - 180 °
Angle of rotation	360 °
Camera shutter speed	1/50000 - 1/25 s
Minimum illumination	0 lx
Type	CCTV security camera
Languages support	CHI (TR), ENG
Number of languages	2
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Sensor type	CMOS
Lens mount interface	M12
Interface	BNC
Built-in HDD	No
LED type	IR
Night vision distance	20 m
Form factor	Bullet
Mounting type	Ceiling/wall
Product color	White
Housing material	Metal
International Protection (IP) code	IP67
Operating temperature (T-T)	-40 - 60 °C
DC output voltage	12
Power source type	DC
Power consumption (max)	4.5 W
Power over Ethernet (PoE)	-

Weight and Dimensions

Depth	68 mm
Width	70 mm
Height	179.8 mm
Weight	345 g
