HIKVISION DS-2CE11D8T-PIRL User Manual

Junction
Box Cover

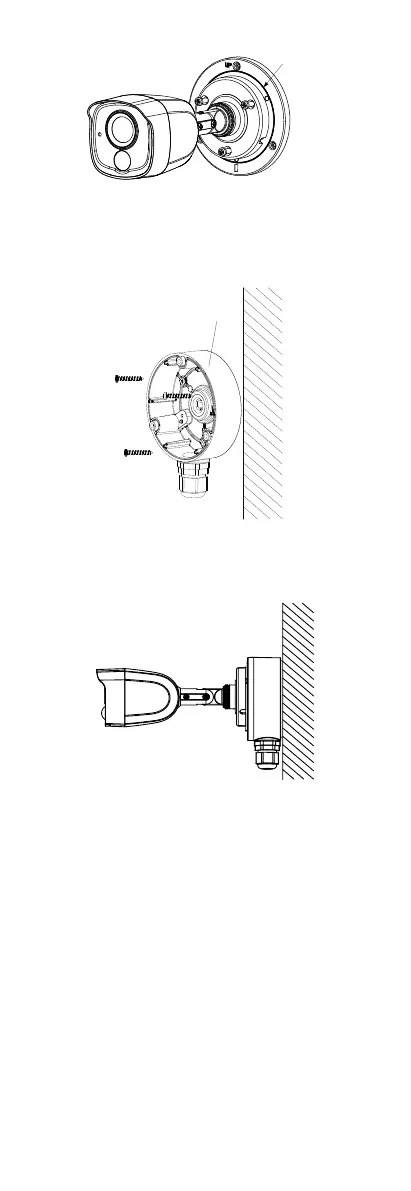

Figure 2-5 Fix the Camera on the Junction Box’s Cover
5. Attach the junction box body to the ceiling/wall by
aligning the screw holes of the junction box.
6. Secure the junction box’s body with supplied screws
on the ceiling/wall.
Junction Box
Body
Figure 2-6 Fix the Junction Box to the Wall/Ceiling
7. Route the cables through the bottom cable hole, or
the side cable hole of the junction box.
8. Combine the junction box cover with its body.
Figure 2-7 Fix the Junction Box Cover back to its
Body
9. Repeat the step 5 and 6 of 2.1.1 Ceiling/Wall
Mounting without Junction Box to complete the
installation.
2.2 Installation of Type II Camera
2.2.1 Ceiling/Wall Mounting without Junction Box
Steps:
1. Paste the drill template (supplied) to the place
where you want to install the camera.
2. Drill the screw holes according to the drill template,
and the cable hole (optional) on the ceiling.

HIKVISION DS-2CE11D8T-PIRL Specifications

General

Full HD	Yes
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Image quality adjustment	Brightness, Sharpness
Analog signal format system	NTSC, PAL
Fixed focal length	2.8 mm
Number of cameras	1
Pan range	0 - 360 °
White balance	ATW, Manual
Tilt angle range	0 - 180 °
Angle of rotation	360 °
Camera shutter speed	1/50000 - 1/25 s
Minimum illumination	0 lx
Type	CCTV security camera
Languages support	CHI (TR), ENG
Number of languages	2
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Sensor type	CMOS
Lens mount interface	M12
Interface	BNC
Built-in HDD	No
LED type	IR
Night vision distance	20 m
Form factor	Bullet
Mounting type	Ceiling/wall
Product color	White
Housing material	Metal
International Protection (IP) code	IP67
Operating temperature (T-T)	-40 - 60 °C
DC output voltage	12
Power source type	DC
Power consumption (max)	4.5 W
Power over Ethernet (PoE)	-

Weight and Dimensions

Depth	68 mm
Width	70 mm
Height	179.8 mm
Weight	345 g
