HIKVISION DS-2CE11D8T-PIRL User Manual

 For cement wall/ceiling, expansion bolts are
required to fix the camera. For wooden
wall/ceiling, self-tapping screws are required.
4. Route the cables through the cable hole, or the side
opening.
5. Connect the corresponding power cord, and video
cable.
6. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure below
to get an optimum angle.

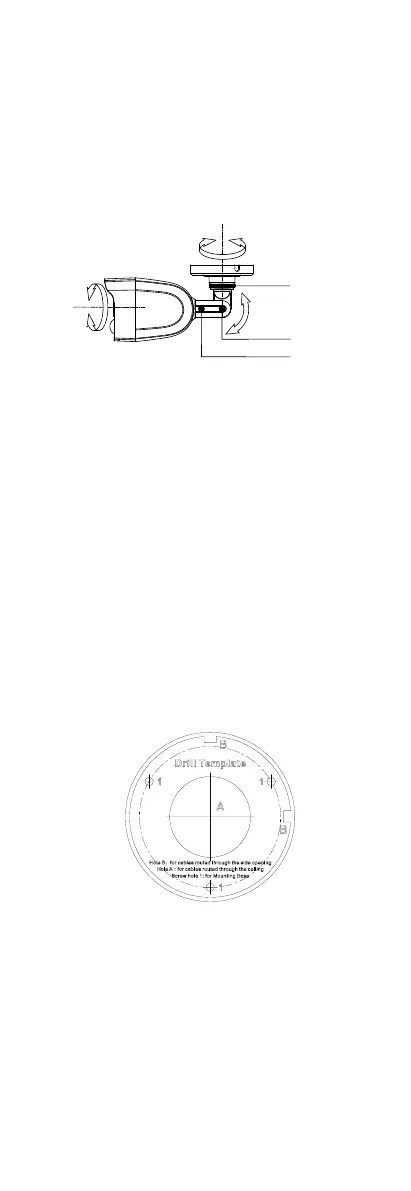

Pan Position
[0° to 360°]
P Screw
Tilt Position
[0° to 180°]
T Screw
R Screw
Rotation Position
[0° to 360°]
Figure 2-3 3-axis Adjustment
1). Loosen the P screw to adjust the pan position [0°
to 360°]. Tighten the screw after completing the
adjustment.
2). Loosen the T screw to adjust the tilt position [0°
to 180°]. Tighten the screw after completing the
adjustment.
3). Loosen the R screw and rotate the camera [0° to
360°]. Tighten the screw after completing the
adjustment.
2.1.2 Ceiling/Wall Mounting with Junction Box
Before you start:
You need to purchase a junction box separately.
Steps:
1. Paste the drill template on the ceiling/wall.
2. Drill screw holes and the cable hole in the
ceiling/wall according to the holes of the drill
template.
Figure 2-4 Drill Template of Junction Box
3. Take apart the junction box, and align the screw
holes of the bullet camera with those on the
Junction box’ cover.
4. Fix the camera on the junction box’s cover with
supplied screws.

HIKVISION DS-2CE11D8T-PIRL Specifications

General

Full HD	Yes
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Image quality adjustment	Brightness, Sharpness
Analog signal format system	NTSC, PAL
Fixed focal length	2.8 mm
Number of cameras	1
Pan range	0 - 360 °
White balance	ATW, Manual
Tilt angle range	0 - 180 °
Angle of rotation	360 °
Camera shutter speed	1/50000 - 1/25 s
Minimum illumination	0 lx
Type	CCTV security camera
Languages support	CHI (TR), ENG
Number of languages	2
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Sensor type	CMOS
Lens mount interface	M12
Interface	BNC
Built-in HDD	No
LED type	IR
Night vision distance	20 m
Form factor	Bullet
Mounting type	Ceiling/wall
Product color	White
Housing material	Metal
International Protection (IP) code	IP67
Operating temperature (T-T)	-40 - 60 °C
DC output voltage	12
Power source type	DC
Power consumption (max)	4.5 W
Power over Ethernet (PoE)	-

Weight and Dimensions

Depth	68 mm
Width	70 mm
Height	179.8 mm
Weight	345 g
