3). Loosen the No.2 adjusting screw to adjust the
tilting position (0° to 180°).
4). Tighten the No. 2 adjusting screw.
5). Loosen the No.3 adjusting screw to adjust the
rotation position (0° to 360°).
6). Tighten the No.3 adjusting screw.
0° to 360°
3
2
1
0° to 360°
0° to 180°

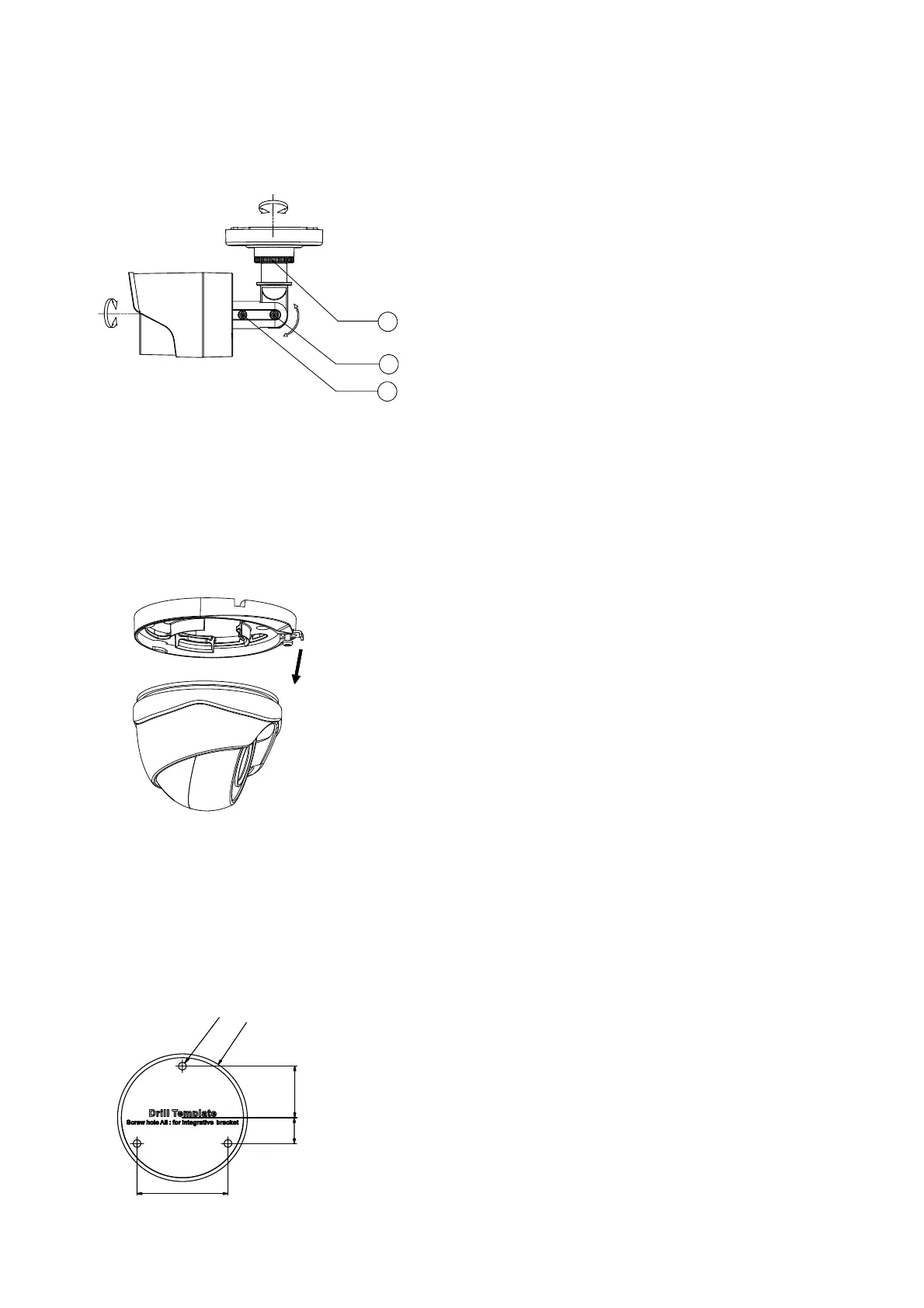

Figure 2. 3 3-Axis Adjustment
2.3 Installation of Type II camera
Steps:
1. Use the hex wrench to loosen the screw, and
remove the mounting base from the camera body,
shown as the figure 2.4.
Figure 2. 4 Disassemble the Camera
2. Attach the drill template (supplied) to the place
where you want to install the camera, and then drill
the screw holes according to the drill template, and
the cable hole (optional) on the ceiling.
Note:
Cable hole is required when adopting ceiling outlet to
route the cable.
47.6
13.7
27.5
Φ
68
3
-
Φ
4
Unit： mm
Figure 2. 5 Drill Template
