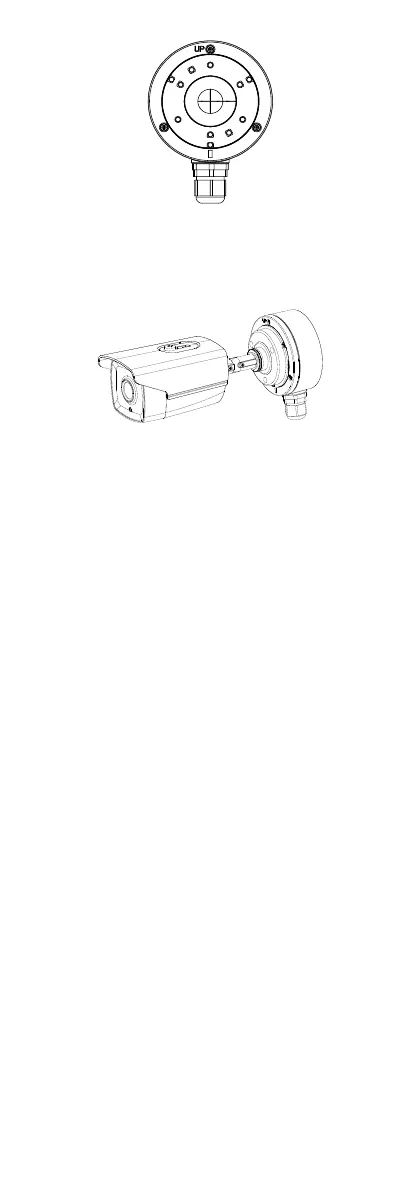

Figure 2-11 Install the Junction Box
6. Route the cables through the bottom cable hole, or
the side cable hole of the junction box.
7. Combine the junction box cover with its body with
supplied screws on the junction box’s cover.
Figure 2-12 Combine the Junction Box’s Cover with its
Body
8. Repeat the step 5 and 6 of 2.2.1 Ceiling/Wall
Mounting without Junction Box to complete the
installation.
