UM DS-2CE1xU8T-ITx 042618NA 10

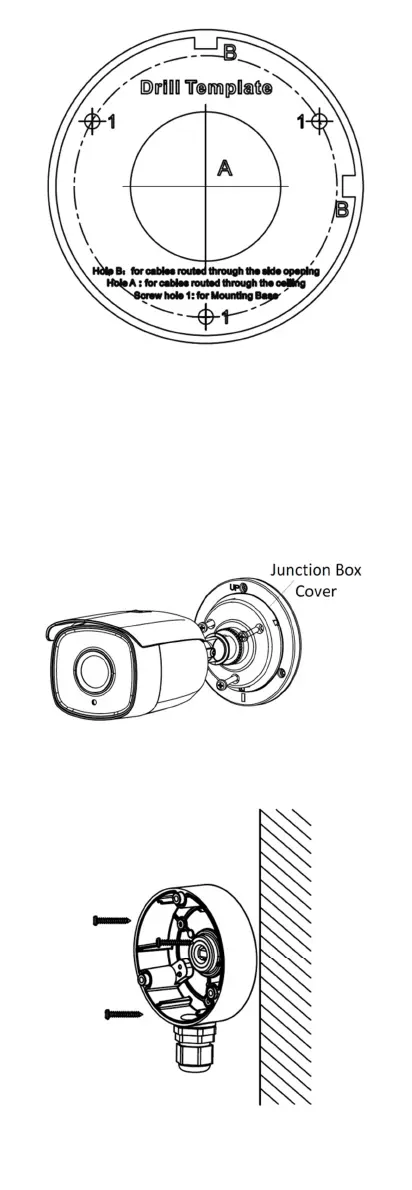

Figure 13 Drill Template
Note:
Drill the cable hole, when adopting ceiling outlet to
route the cable.
3. Take apart the junction box, and align the screw
holes of the bullet camera with those on the
Junction box’s cover.
4. Fix the camera on the junction box cover with
three supplied screws.
Figure 14 Fix the Camera on the Junction Box Cover
5. Secure the junction box’s body with supplied
screws on the ceiling/wall.
Figure 15 Install the Junction Box
