6. Route the cables through the bottom cable hole or
the side cable hole of the junction box.
7. Combine the junction box cover with its body with
supplied screws on the junction box cover.

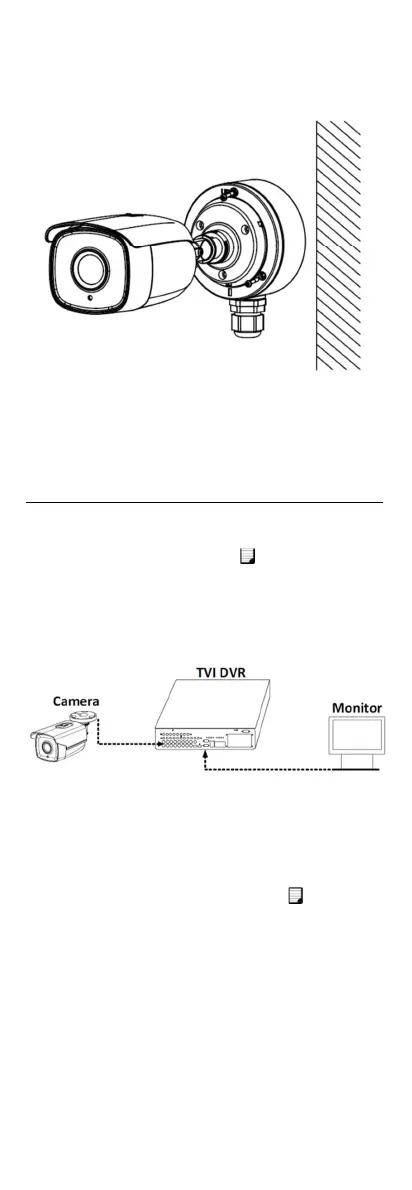

Figure 16 Combine the Junction Box’s Cover with its
Body
8. Repeat step 5 and 6 of 2.2.1 Ceiling/Wall Mounting
without Junction Box to complete the installation.
4 Menu Description
Purpose:
Call the menu by clicking button on the PTZ
Control interface, or call preset No.95.
Steps:
1. Connect the camera to the TVI DVR and the
monitor, as shown below.
Figure 17 Connection
2. Power on the analog camera, TVI DVR, and the
monitor to view the image on the monitor.
3. Click PTZ Control to enter the PTZ Control
interface.
4. Call the camera menu by clicking the button, or
call preset No. 95.
