UM DS-2CE1xU8T-ITx 042618NA 8
7. Route the cables through the bottom cable hole
(optional) or the side cable hole of the junction
box.
8. Combine the junction box cover with its body.

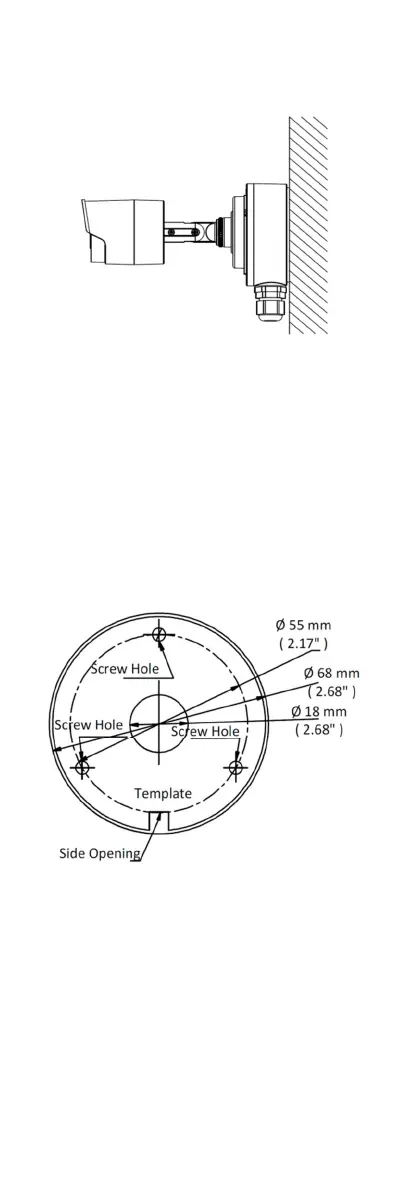

Figure 9 Fix the Junction Box Cover Back to its Body
9. Repeat the step 5 and 6 of 2.1.1 Ceiling/Wall
Mounting without Junction Box to complete the
installation.
3.2 Installation of Type II Camera
3.2.1 Ceiling/Wall Mounting without Junction Box
Steps:
1. Paste the drill template (supplied) to the place
where you want to install the camera.
2. Drill the screw holes according to the drill template
and the cable hole (optional) on the ceiling/wall.
Figure 10 Drill Template
Note:
Drill the cable hole in the center of the drill template
when using ceiling outlet to route the cable.
3. Route the cables through the cable hole (optional)
or the side opening.
4. Fix the camera to the ceiling with supplied screws.
To Next Page
