UM DS-2CE1xU8T-ITx 042618NA 7

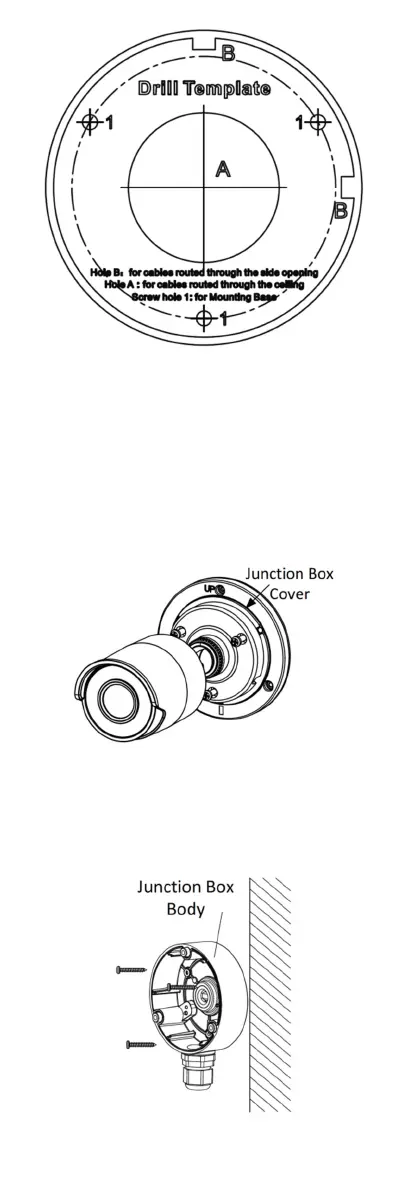

Figure 6 Drill Template of Junction Box
Note:
Drill the cable hole when using the ceiling outlet to
route the cable.
3. Take apart the junction box, and align the screw
holes of the bullet camera with those on the
Junction box cover.
4. Fix the camera on the junction box’s cover with
supplied screws.
Figure 7 Fix the Camera on the Junction Box Cover
5. Attach the junction box body to the ceiling/wall by
aligning the screw holes of the junction box.
6. Secure the junction box body with supplied screws
on the ceiling/wall.
Figure 8 Fix the Junction Box to the Wall/Ceiling
