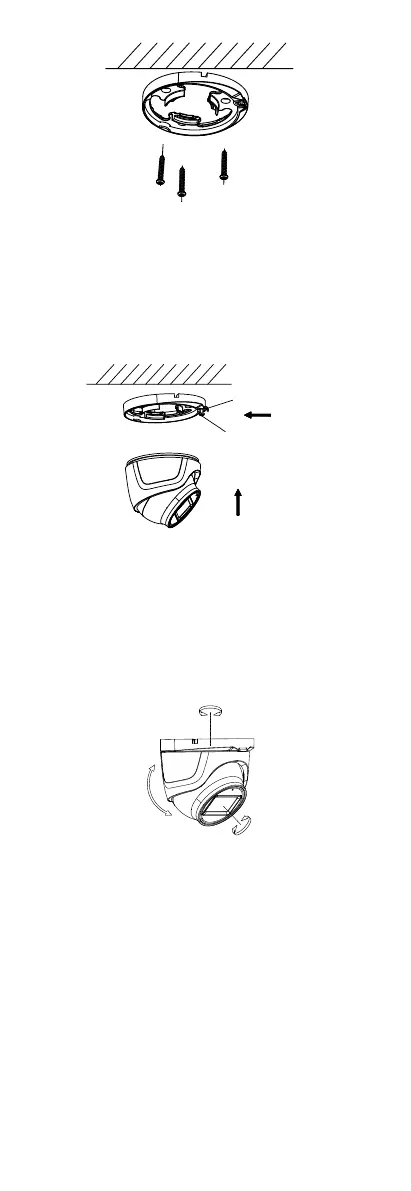

Figure 2-18 Secure the Mounting Base to the Ceiling
5. Route the cables through the cable hole, or the side
opening.
6. Secure the camera on the mounting base.
1) Pull out the clip plate, and then to combine
the camera with the mounting base.
2) Push the clip plate in, and secure the camera
by tightening the screw.
Figure 2-19 Secure the Camera
7. Connect the corresponding cables, such as power
cord, and video cable.
8. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure below
to get an optimum angle.
