4. Route the cables through the cable hole, or the side
opening.
5. Install the camera back to the mounting base and
secure it.

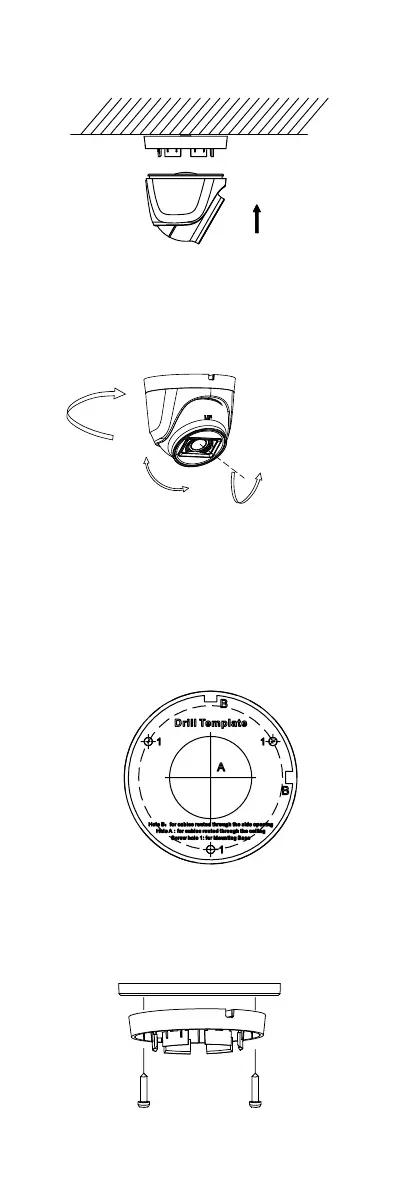

Figure 2-11 Install the Camera Back
6. Connect the corresponding power cord, and video
cable.
7. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure below
to get an optimum angle.
Figure 2-12 3-Axis Adjustment
2.2.2 Ceiling/Wall Mounting with Junction Box
Before you start:
You need to purchase a junction box in advance.
1. Paste the drill template on the ceiling/wall.
2. Drill screw holes and the cable hole according to the
drill template.
Figure 2-13 Drill Template of the Junction Box
3. Take apart the junction box, and align the screw
holes of the mounting base with those on the
Junction box’s cover.
4. Install the mounting base to the junction box’s cover
with screws.
Figure 2-14 Install the Mounting Base
