HIKVISION DS-2DF1-512 User Manual

Hikvision Technical Manual
©2006 – 2011 by HIKVISION. All rights reserved.
3

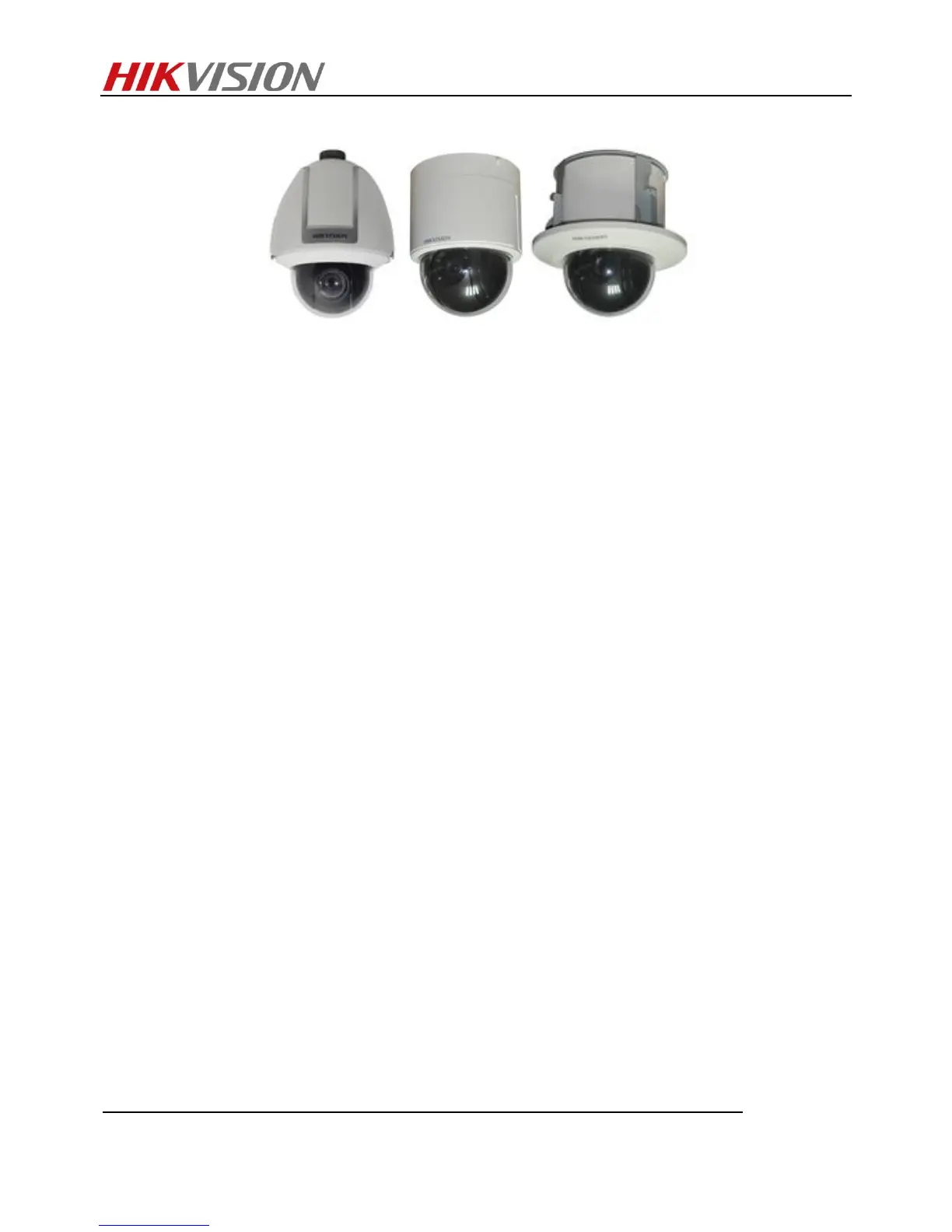

DS-2DF1-5XY Series
Key feature
System function:
 1/4’’ SONY high performance CCD
 ±0.1° Preset Accuracy
 Self-adaptive to HIKVISION, Pelco-P/D protocol
 3D intelligent positioning function
 Power-off memory function: restore PTZ & Lens status after reboot
 Fiber optical interface optional
 Built-in temperature sensor, with display of internal temperature
Camera function:
 Auto iris, auto focus, auto white balance, backlight compensation and auto/manual day & night switch
 Privacy masks programmable
PTZ function:
 360° endless pan range and -5°-185° tilt range
 540°/s Pan Preset Speed and 400°/s Tilt Preset Speed
 0.1°-300°/s Manual Pan Speed and 0.1°-240°/s Manual Tilt Speed
 256 presets programmable; preset image freezing capability
 8 patrols, up to 32 presets per patrol
 4 patterns, with the recording time not less than 10 min per pattern
 Proportional zoom function
 Park action: auto callup of PTZ movement, after a defined time of inactivity
 2 alarm inputs and 2 alarm outputs（7 alarm inputs and 2 alarm outputs optional）
Network function:
 H.264 video compression and the latest DaVinci processing chip and platform
 Built-in Web server
 SD/SDHC card local storage
 Dual stream
 Multiple network protocols supported: TCP/IP, HTTP, DHCP, DNS, RTP/RTCP, PPPoE,FTP, SMTP, NTP, SNMP
 1 audio input and 1 audio output
 Hi-PoE optional

HIKVISION DS-2DF1-512 Specifications

General

Brand	HIKVISION
Model	DS-2DF1-512
Category	Security Camera
Language	English
