Thermal & Optical Network Turret Camera Quick Start Guide
9
6. Secure with the in clockwise direction.
3.4.2 Waterproof Other Cables
After routing and connecting the cables, use the waterproof tapes to wrap up
the cables. Connected cables and spare cables both should be wrapped up as
the figures below.

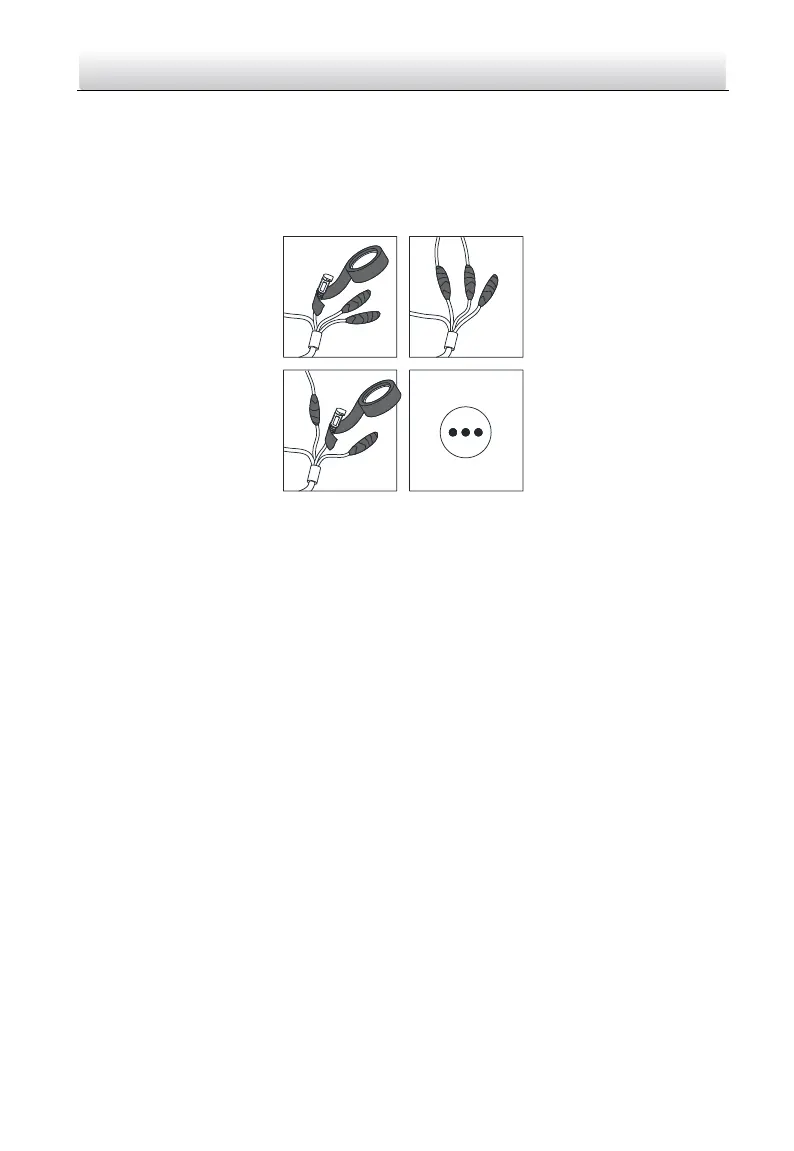

Figure 3-11 Waterproof Cables

Other manuals for HIKVISION DS-2TD1217-6/PA

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-2TD1217-6/PA and is the answer not in the manual?

HIKVISION DS-2TD1217-6/PA Specifications

General IconGeneral
ModelDS-2TD1217-6/PA
CategorySecurity Camera
Thermal Module: Image SensorUncooled VOx Microbolometer
Resolution160 × 120
Pixel Interval17μm
Lens (Focal Length)6.8mm
ApertureF1.0
Visible Light Module: Image Sensor1/2.7" Progressive Scan CMOS
Protection Level/IP RatingIP67
Response Waveband8μm ~ 14μm
Thermal Sensitivity/NETD≤ 50mK
Digital Zoom8x
Visible Light Module: Min. Illumination0.01 Lux @ (F1.2, AGC ON)
Video Resolution1920 x 1080
Frame Rate25 fps
Image SettingsBrightness, Contrast, Saturation
Temperature Measurement Range-20 °C to 150 °C
Temperature Measurement Accuracy±2°C or ±2%
Video Output1 Vp-p composite output (75 Ω/BNC)
Alarm Input1
Alarm Output1
RS-4851-channel
Power SupplyDC12V ±25%
Working Temperature/HumidityHumidity: 95% or less
FocusFixed
