4 Set the System over the LAN
Notes:
 You shall acknowledge that the use of the product with Internet access might be
under network security risks. For avoidance of any network attacks and
information leakage, please strengthen your own protection. If the product does
not work properly, please contact with your dealer or the nearest service center.
 To ensure the network security of the Turret Camera, we recommend you to have
the system assessed and maintained termly. You can contact us if you need such
service.
4.1 Wiring
To view and configure the system via LAN (Local Area Network), you need to connect the
network system in the same subnet with your PC. Then, install the SADP or client
software to search and change the IP of network system.

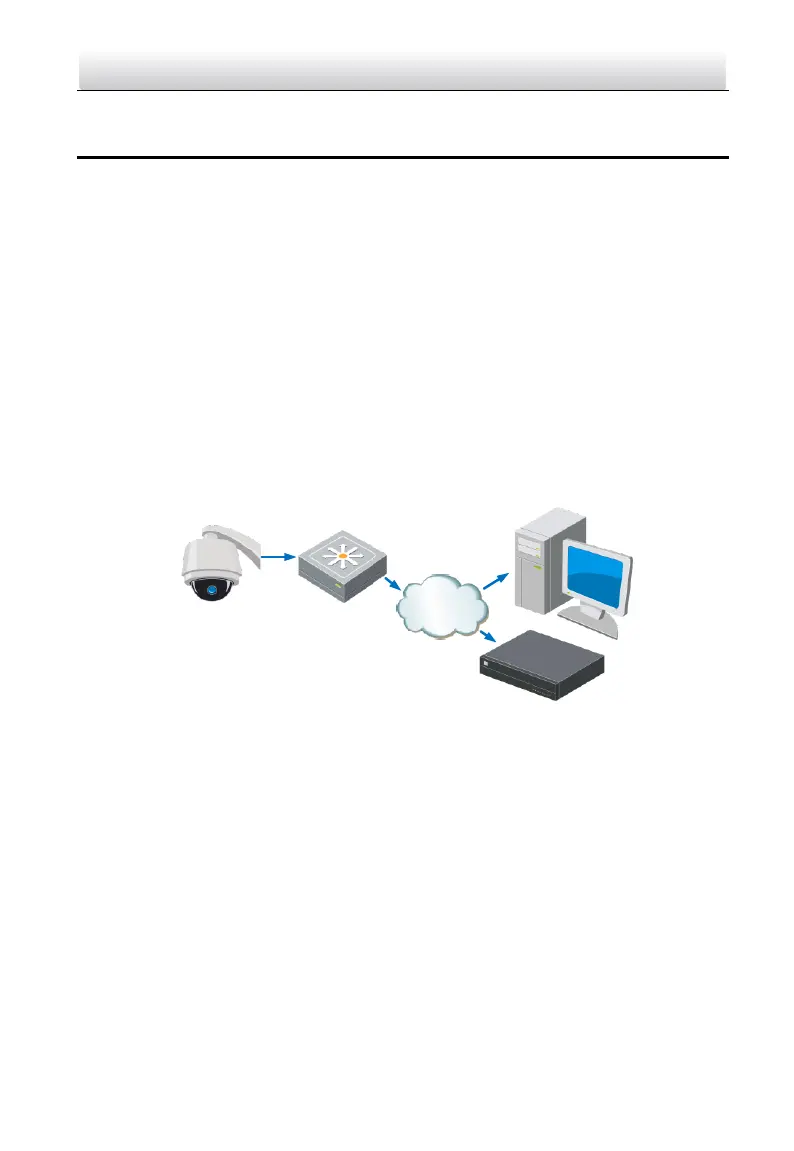

The following figure shows the cable connection of network system.
Network
Speed Dome
Switch
Internet
NVR
PC
Figure 4-1 Wiring over LAN
4.2 Activate the System
Purpose:
You are required to activate the system first by setting a strong password for it before
you can use the system.
Activation via Web Browser, Activation via SADP, and Activation via client software are
supported. In the following sections, activation via web browser and SADP will be taken
as examples. You may refer to the user manual of the system for the details of activation
via client software.
4.2.1 Activation via Web Browser
Steps:
1. Power on the system, and connect the system to the network.

HIKVISION DS-2TD1217-6/PA Specifications

General

Model	DS-2TD1217-6/PA
Category	Security Camera
Thermal Module: Image Sensor	Uncooled VOx Microbolometer
Resolution	160 × 120
Pixel Interval	17μm
Lens (Focal Length)	6.8mm
Aperture	F1.0
Visible Light Module: Image Sensor	1/2.7" Progressive Scan CMOS
Protection Level/IP Rating	IP67
Response Waveband	8μm ~ 14μm
Thermal Sensitivity/NETD	≤ 50mK
Digital Zoom	8x
Visible Light Module: Min. Illumination	0.01 Lux @ (F1.2, AGC ON)
Video Resolution	1920 x 1080
Frame Rate	25 fps
Image Settings	Brightness, Contrast, Saturation
Temperature Measurement Range	-20 °C to 150 °C
Temperature Measurement Accuracy	±2°C or ±2%
Video Output	1 Vp-p composite output (75 Ω/BNC)
Alarm Input	1
Alarm Output	1
RS-485	1-channel
Power Supply	DC12V ±25%
Working Temperature/Humidity	Humidity: 95% or less
Focus	Fixed
