HIKVISION DS-2TD1217-6/PA User Manual

Thermal & Optical Bi-spectrum Network Camera User Manual
82
13.3 Device Communication Matrix

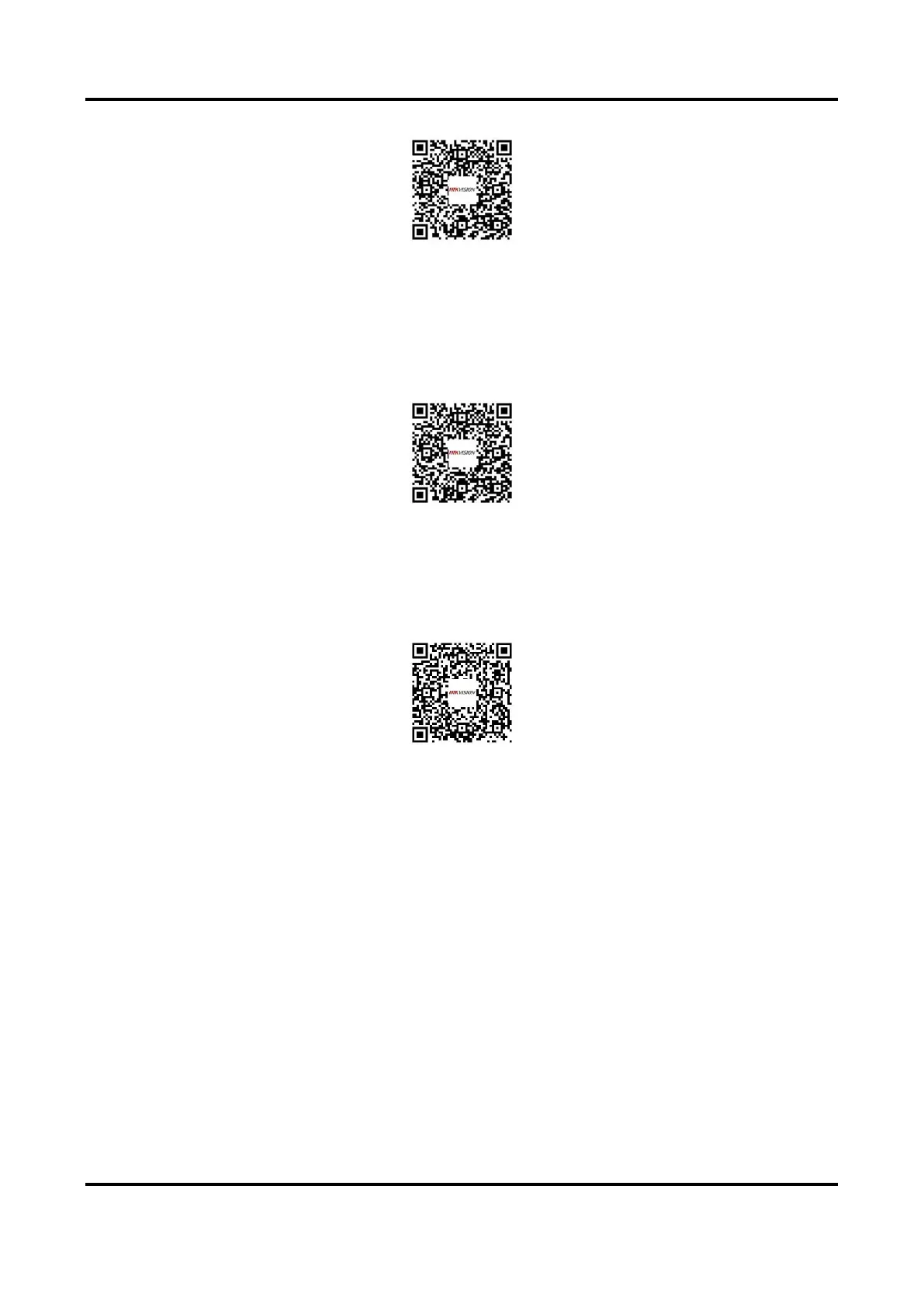

Scan the following QR code to get device communication matrix.
Note that the matrix contains all communication ports of Hikvision thermal cameras.
13.4 FAQ
Scan the following QR code to get device common FAQ.

HIKVISION DS-2TD1217-6/PA Specifications

General

Model	DS-2TD1217-6/PA
Category	Security Camera
Thermal Module: Image Sensor	Uncooled VOx Microbolometer
Resolution	160 × 120
Pixel Interval	17μm
Lens (Focal Length)	6.8mm
Aperture	F1.0
Visible Light Module: Image Sensor	1/2.7" Progressive Scan CMOS
Protection Level/IP Rating	IP67
Response Waveband	8μm ~ 14μm
Thermal Sensitivity/NETD	≤ 50mK
Digital Zoom	8x
Visible Light Module: Min. Illumination	0.01 Lux @ (F1.2, AGC ON)
Video Resolution	1920 x 1080
Frame Rate	25 fps
Image Settings	Brightness, Contrast, Saturation
Temperature Measurement Range	-20 °C to 150 °C
Temperature Measurement Accuracy	±2°C or ±2%
Video Output	1 Vp-p composite output (75 Ω/BNC)
Alarm Input	1
Alarm Output	1
RS-485	1-channel
Power Supply	DC12V ±25%
Working Temperature/Humidity	Humidity: 95% or less
Focus	Fixed
