Ultra-wide Panoramic Network Camera·Quick Start Guide
Figure 2-4 PT Joint Bottom Installation
4. Fix the PT joint top with the PT joint bottom with three 1/4 UNC
screws to secure the camera to the installation base.

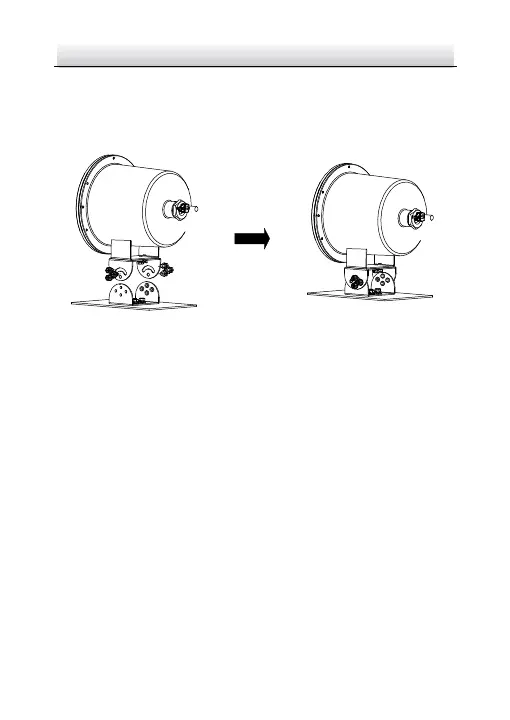

Figure 2-5 Fix the PT Joint
5. Power on the camera, and set the network configuration (for
details, refer to 3 Set the Network Camera over the LAN and 4
Access via Web Browser) to check whether the image is gotten
from the optimum angle. If not, adjust the surveillance angle.
6. (Optional) Adjust the tilting position.
1) Loosen the Tilt adjusting screw No.1 to adjust the tilting
position [0° to +45°].
2) Loosen the Tilt adjusting screw No.2 to adjust the tilting
position [-45° to 0°].
3) Tighten the adjusting screw.
7. Adjust the panning position.
1) Loosen the pan adjusting screw to adjust the panning
position [-45° to +45°].
To Next Page
