Ultra-wide Panoramic Network Camera·Quick Start Guide
14
2.2 PT Joint Mounting
Steps:
1. Connect the cables and make sure the insulation performance of
power cable.

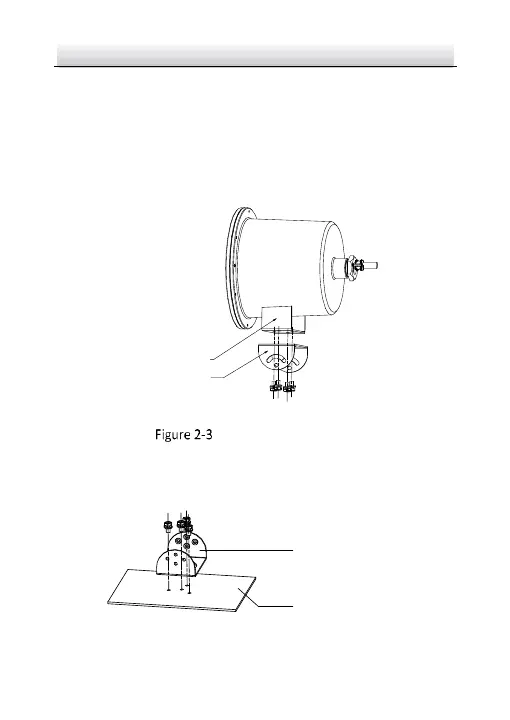

2. Fix the camera base to the PT joint top with four 1/4 UNC screws.
Camera Base
PT Joint Top
PT Joint Top Installation
3. Fix the PT joint bottom to the installation base with four 1/4 UNC
screws.
Installation
Base
PT Joint
Bottom
