HIKVISION DS-2XM6222FWD-I User Manual

Network Mobile Camera·Quick Start Guide
11
11
Notes:
● The camera series has two types of cable groups (shown in
overview). You camera has either of them.
● The relation between RJ45 wire and M12 wire is shown in the
following figure and table.
1 2
3
4
1
8
M12 Aviation Plug RJ45 Network Interface

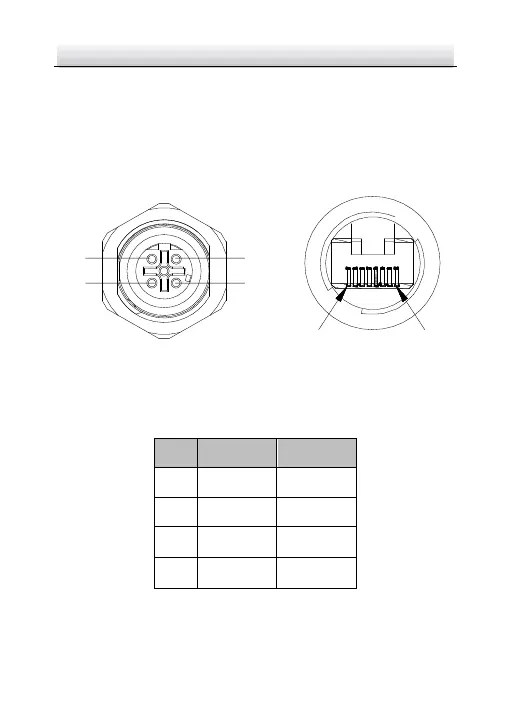

Figure 1-2 RJ45 Interface and M12 Aviation Plug
Wire Relation Table 1-2
M12 Wire
RJ45 Wire
TX+
1
1
TX-
3
2
RX+
2
3
RX-
4
6
