DS-6700HUHI-K Series Encoder Quick Start Guide
16
4.3 Operating PTZ Control
Before you start:
1. Make sure the encoder is connected with the camera/dome which supports PTZ function. Connect the R+ and
R
-
terminals of the pan/tilt unit or speed dome to RS-485 T+ and RS-485 T- terminals of the device
respectively.
2. The baud rate, PTZ control and address configured in the RS-485 Settings interface (Remote
Configuration > Serial Port Settings > 485 Serial Port) must be the same with the parameters of the
connected pan/tilt unit or speed dome.
Operating PTZ Control
In live view mode, you can use the PTZ control buttons to realize pan/tilt/zoom control of the camera lens.
There will be 8 directional buttons (up, down, left, right, upper left, upper right, bottom left, bottom right) on the
display window when the mouse is located in the relative positions.
Click on the directional buttons to control the pan/tilt movement.

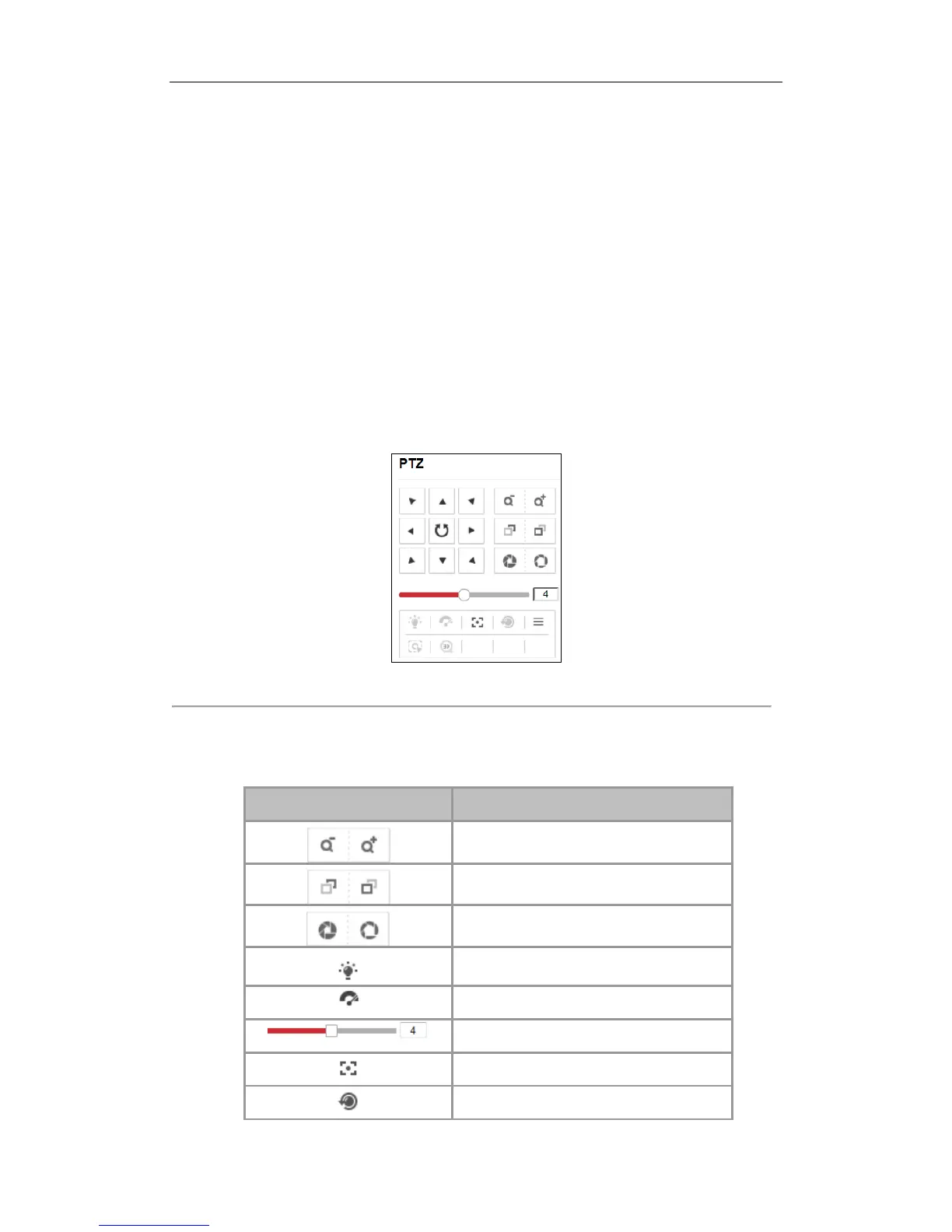

Figure 4. 4 PTZ
Click the zoom/iris/focus buttons to realize lens control.
Refer to the following table for description of PTZ control buttons:
Table 4.2 Description of PTZ Control Buttons
