HIKVISION DS-7100HGHI-F1 Series User Manual

Digital Video Recorder User Manual
108
settings or VCA settings as well. For detailed information, refer to Chapter 8.1, Chapter 8.7
and Chapter 9.
5) Repeat the above steps 1)-4) to schedule recording for other days in the week. If the
schedule can also be set to other days, click Copy.

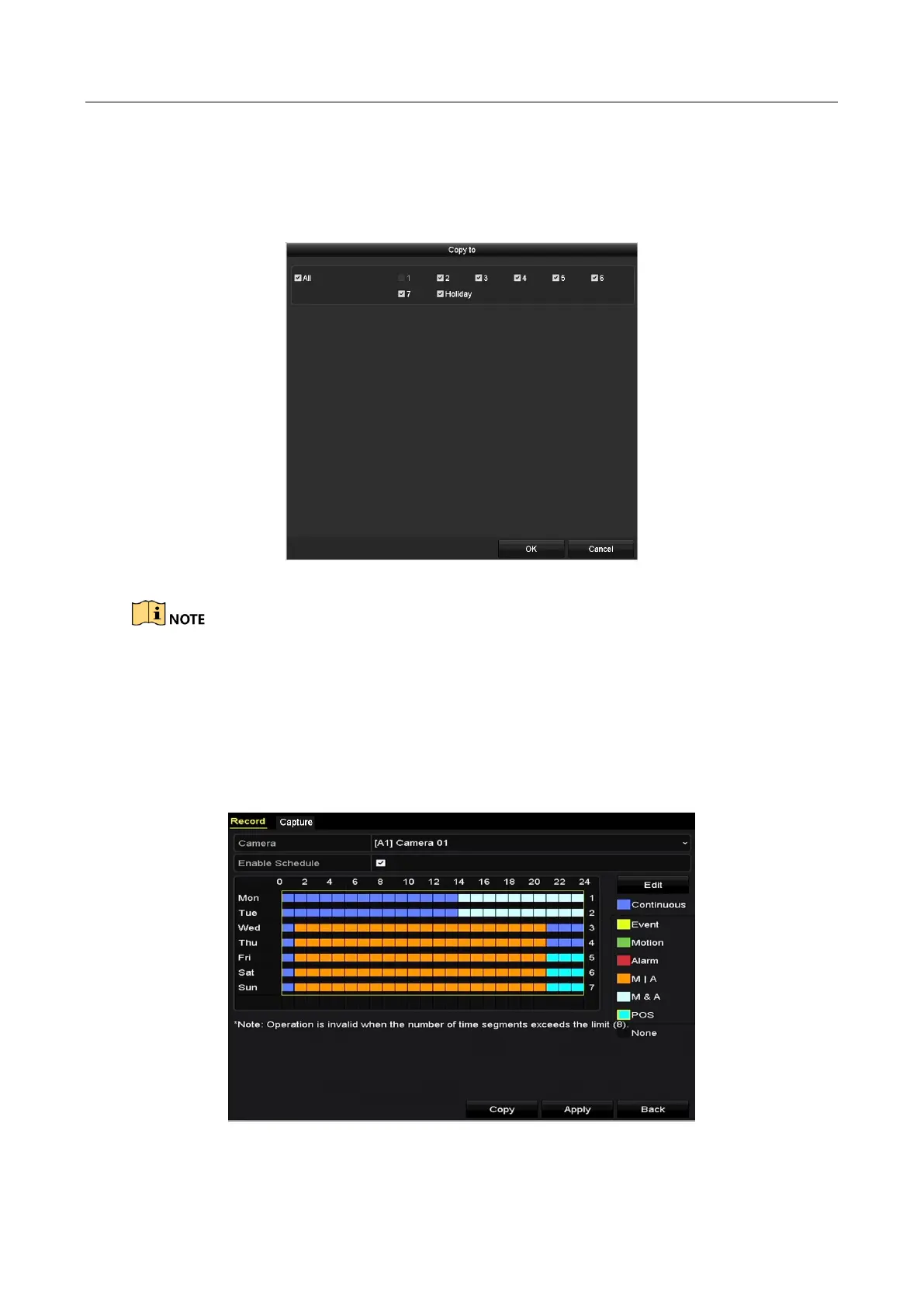

Figure 5-11 Copy Schedule to Other Days
The Holiday option is available when you enable holiday schedule in Holiday settings. See Chapter
5.7 Configuring Holiday Record.
6) Click OK to save setting and back to upper level menu.
Draw the schedule
1) Click on the color icon to select a record type in the event list on the right-side of the
interface.
Figure 5-12 Draw the Recording Schedule

HIKVISION DS-7100HGHI-F1 Series Specifications

General

Video Input	Up to 16 channels
Video Output	1 HDMI, 1 VGA
Audio Output	1 channel
Compression Format	H.264
Hard Drive Support	1 SATA interface
Power Supply	12V DC
Operating Temperature	-10°C to +55°C
Operating Humidity	10% to 90%
Recording Resolution	Up to 1080p
Storage Capacity	Up to 6TB
Network Interface	1 RJ45 10M/100Mbps
USB Interface	2 USB 2.0
Alarm Output	4 channels
