User Manual of Digital Video Recorder
140

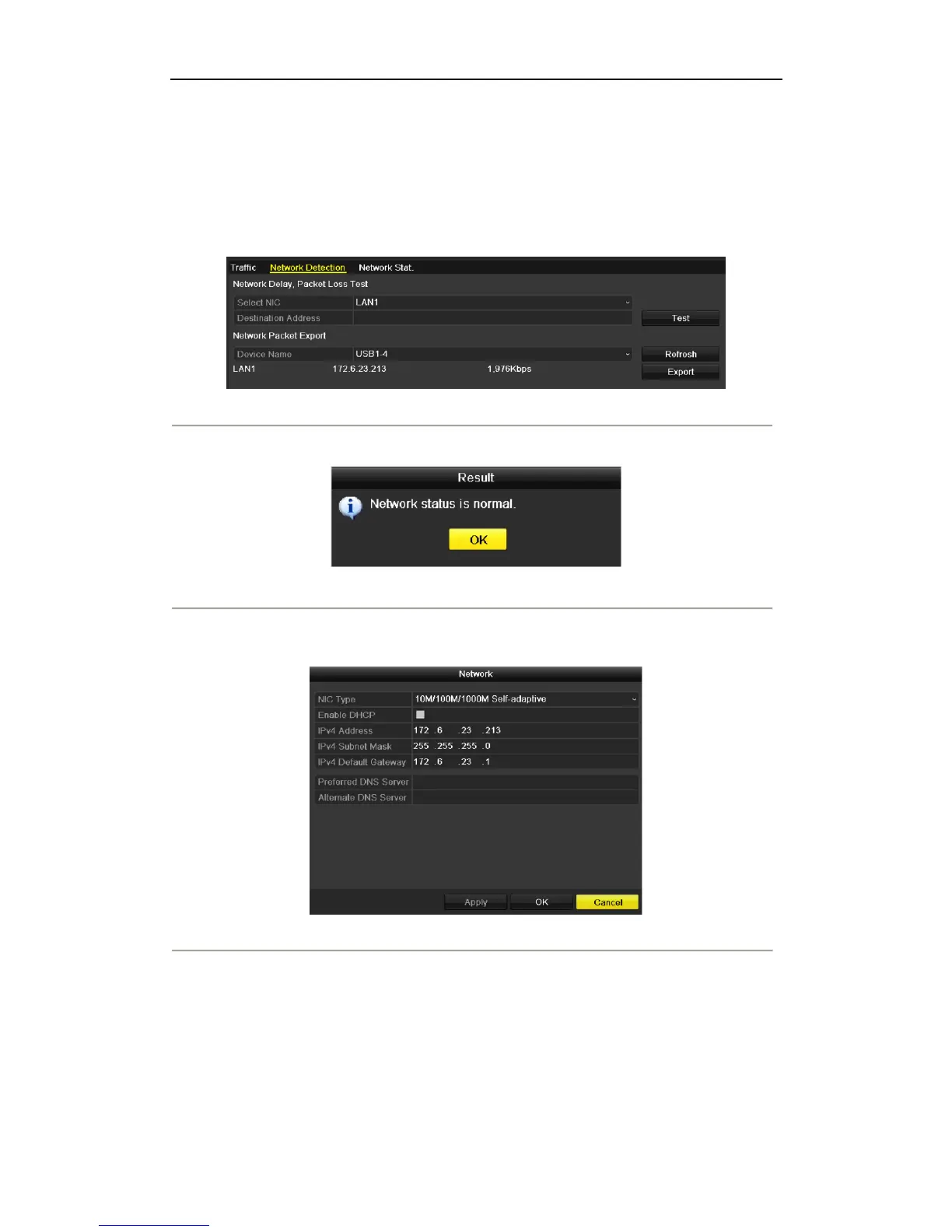

9.4.3 Checking Network Status
Purpose:
You can also check the network status and quick set the network parameters in this interface.
Steps:
Click Status on the right bottom of the page.
Figure 9. 31 Checking Network Status
If the network is normal the following message box pops out.
Figure 9. 32 Network Status Checking Result
If the message box pops out with other information instead of this one, you can click Network button to show
the quick setting interface of the network parameters.
Figure 9. 33 Network Parameters Configuration
9.4.4 Checking Network Statistics
Purpose:
You can check the network statistics to obtain the real-time information of the device.
Steps:

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7204HFHI-SL and is the answer not in the manual?

HIKVISION DS-7204HFHI-SL Specifications

General IconGeneral
Video Input4 channels
Compression FormatH.264
Audio Output1 channel
Video Output1 VGA
Recording Resolution4CIF/2CIF/CIF/QCIF
Network Interface1 RJ45 10/100 Mbps self-adaptive Ethernet interface
Power Supply12 VDC
Audio Input1 channel
Hard Drive1 SATA interface
InterfaceUSB 2.0
Operating Temperature-10°C to +55°C (14°F to 131°F)
