4.3 PTZ Control Panel
In the Live View mode, you can press the PTZ Control button on the front panel or on the remote control, or
choose the PTZ Control icon to enter the PTZ panel.

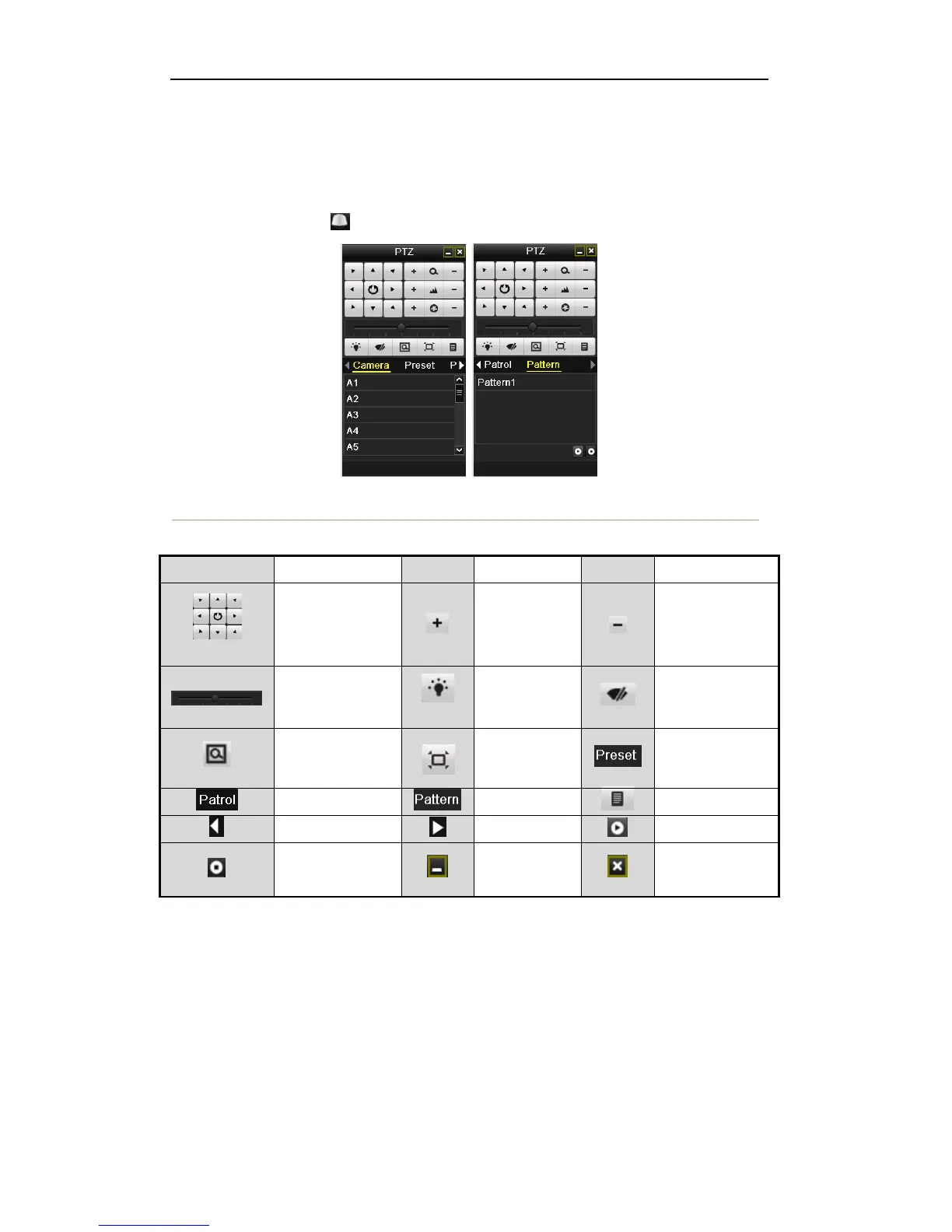

Figure 4. 14 PTZ Panel
Table 4. 1 Description of the PTZ panel icons
Icon
Description
Icon
Description
Icon
Description
Direction button and
the auto-cycle button
Zoom+, Focus+,
Iris+
Zoom-, Focus-, Iris-
The speed of the
PTZ movement
Light on/off
Wiper on/off
3D-Zoom
Centralization
Preset
Patrol
Pattern
Menu
Previous item
Next item
Start pattern/patrol
Stop the patrol or
pattern movement
Minimize
windows
Exit

HIKVISION DS-7204HFHI-SL Specifications

General

Video Input	4 channels
Compression Format	H.264
Audio Output	1 channel
Video Output	1 VGA
Recording Resolution	4CIF/2CIF/CIF/QCIF
Network Interface	1 RJ45 10/100 Mbps self-adaptive Ethernet interface
Power Supply	12 VDC
Audio Input	1 channel
Hard Drive	1 SATA interface
Interface	USB 2.0
Operating Temperature	-10°C to +55°C (14°F to 131°F)
