HIKVISION DS-7204HQHI-F1/N User Manual

Digital Video Recorder User Manual
123

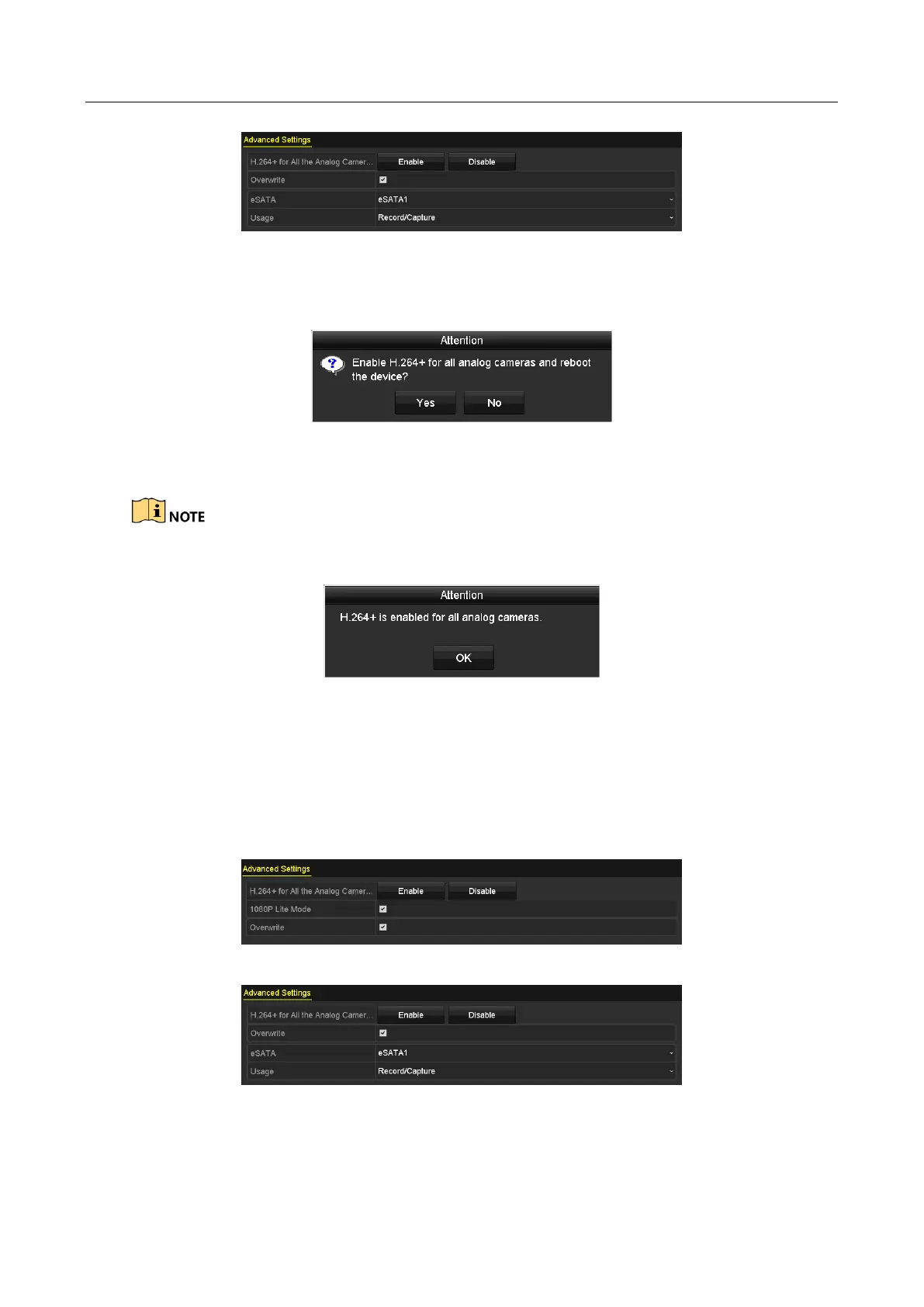

Figure 5-36 Advanced Settings (for HUHI series DVR)
Step 3 Click Enable to enable H.264+ for all the analog cameras and the following attention box
pops up.
Figure 5-37 Attention Box
Step 4 Click Yes to enable the function and reboot the device to have new settings taken effect.
If H.264+ is already enabled for all the analog cameras, when you click Enable button, the following
attention box pops up to remind you that H.264+ is already enabled for all analog cameras.
Figure 5-38 Attention Box
Task 2: One-Key Disabling H.264+ for All Analog Cameras
Step 1 Enter the Record menu
Menu > Record
Step 2 Click Advanced to enter the advanced interface.
Figure 5-39 Advanced Settings (for HQHI and HGHI-F series DVR)
Figure 5-40 Advanced Settings (for HUHI series DVR)

HIKVISION DS-7204HQHI-F1/N Specifications

General

Voltage	12 V
Product color	Black
Rack capacity	1U
Audio formats supported	G.711
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	15 W

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
