HIKVISION DS-7204HQHI-F1/N User Manual

Digital Video Recorder User Manual
180

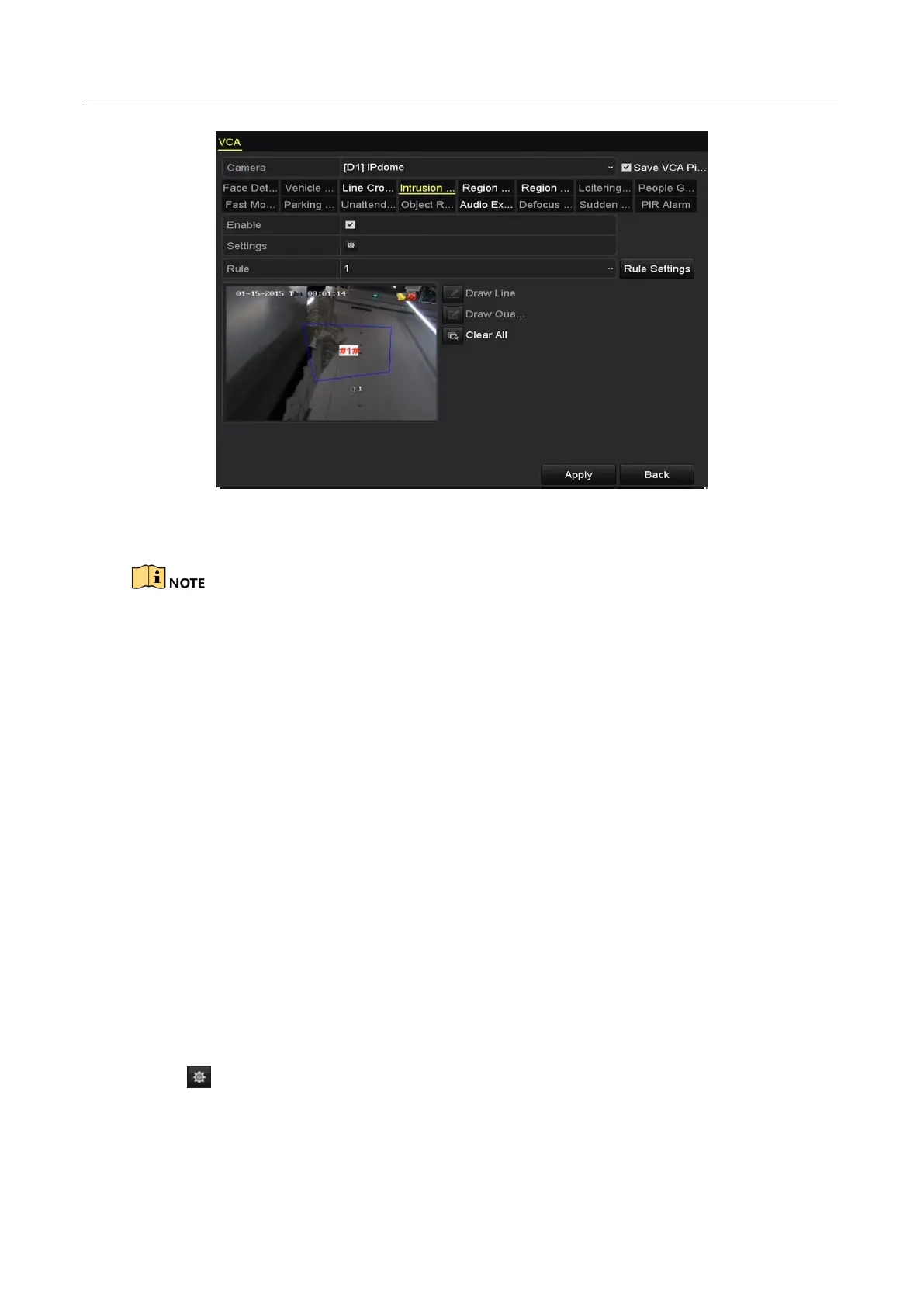

Figure 10-8 Draw Area for Intrusion Detection
Step 8 Click Apply to save the settings.
The sudden scene change detection and the intrusion detection cannot be enabled at the same
channel.
10.5 Region Entrance Detection
Purpose
Region entrance detection function detects people, vehicle or other objects which enter a
pre-defined virtual region from the outside place, and some certain actions can be taken when the
alarm is triggered.
Step 1 Enter the VCA settings interface.
Menu> Camera> VCA
Step 2 Select the camera to configure the VCA.
You can click the checkbox of Save VCA Picture to save the captured pictures of VCA
detection.
Step 3 Select the VCA detection type to Region Entrance Detection.
Step 4 Check the Enable checkbox to enable this function.
Step 5 Click to configure the trigger channel, arming schedule and linkage actions for the
region entrance detection alarm.
Step 6 Click the Rule Settings button to set the sensitivity of the region entrance detection.

HIKVISION DS-7204HQHI-F1/N Specifications

General

Voltage	12 V
Product color	Black
Rack capacity	1U
Audio formats supported	G.711
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	15 W

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
