HIKVISION DS-7204HQHI-F1/N User Manual

Digital Video Recorder User Manual
56

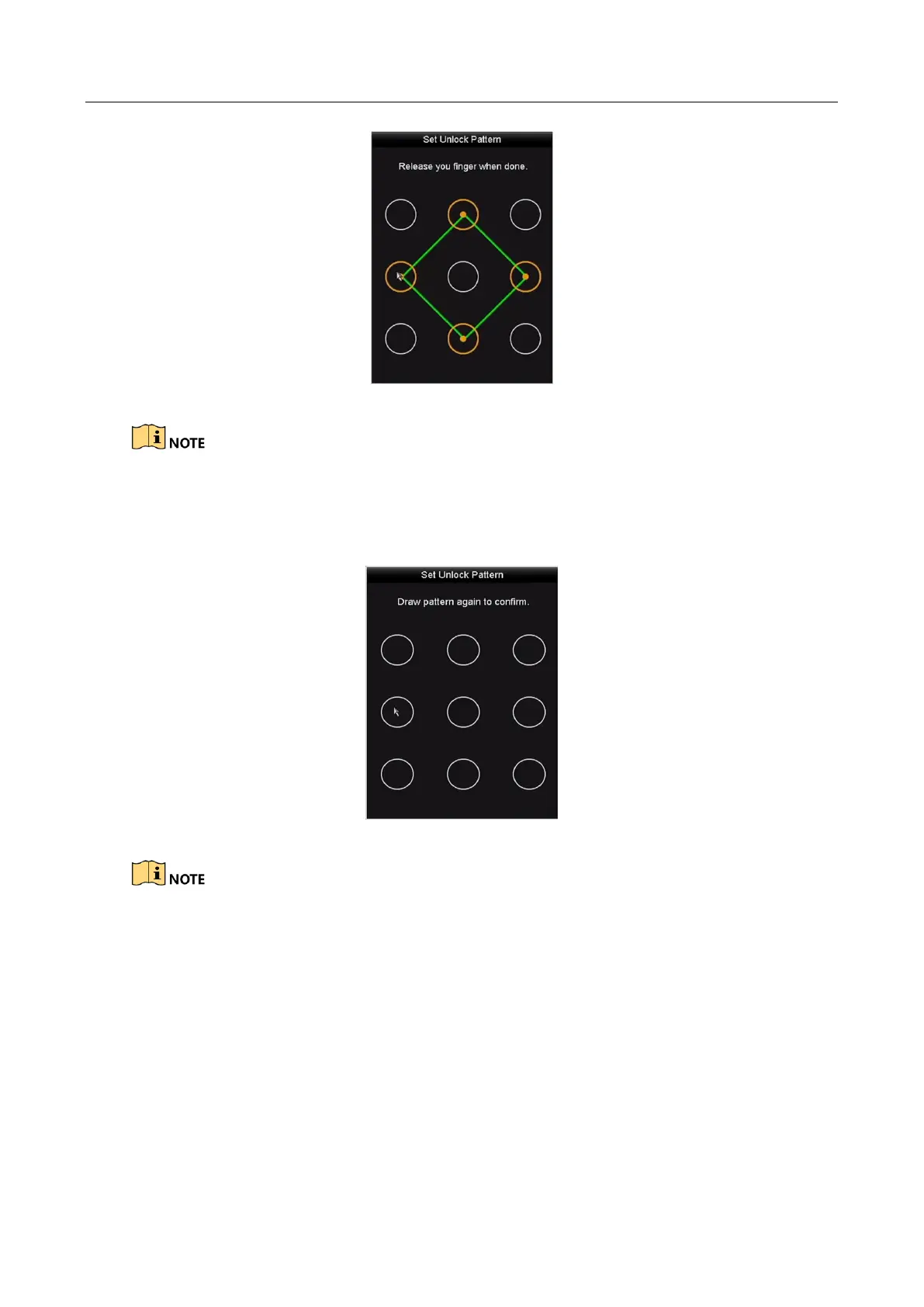

Figure 2-9 Draw the Pattern

Connect at least 4 dots to draw the pattern.

Each dot can be connected for once only.
Step 2 Draw the same pattern again to confirm it. When the two patterns match, the pattern is
configured successfully.
Figure 2-10 Confirm the Pattern
If the two patterns are different, you must set the pattern again.

HIKVISION DS-7204HQHI-F1/N Specifications

General

Voltage	12 V
Product color	Black
Rack capacity	1U
Audio formats supported	G.711
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	15 W

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
