HIKVISION DS-7204HQHI-F1/N User Manual

Digital Video Recorder User Manual
61

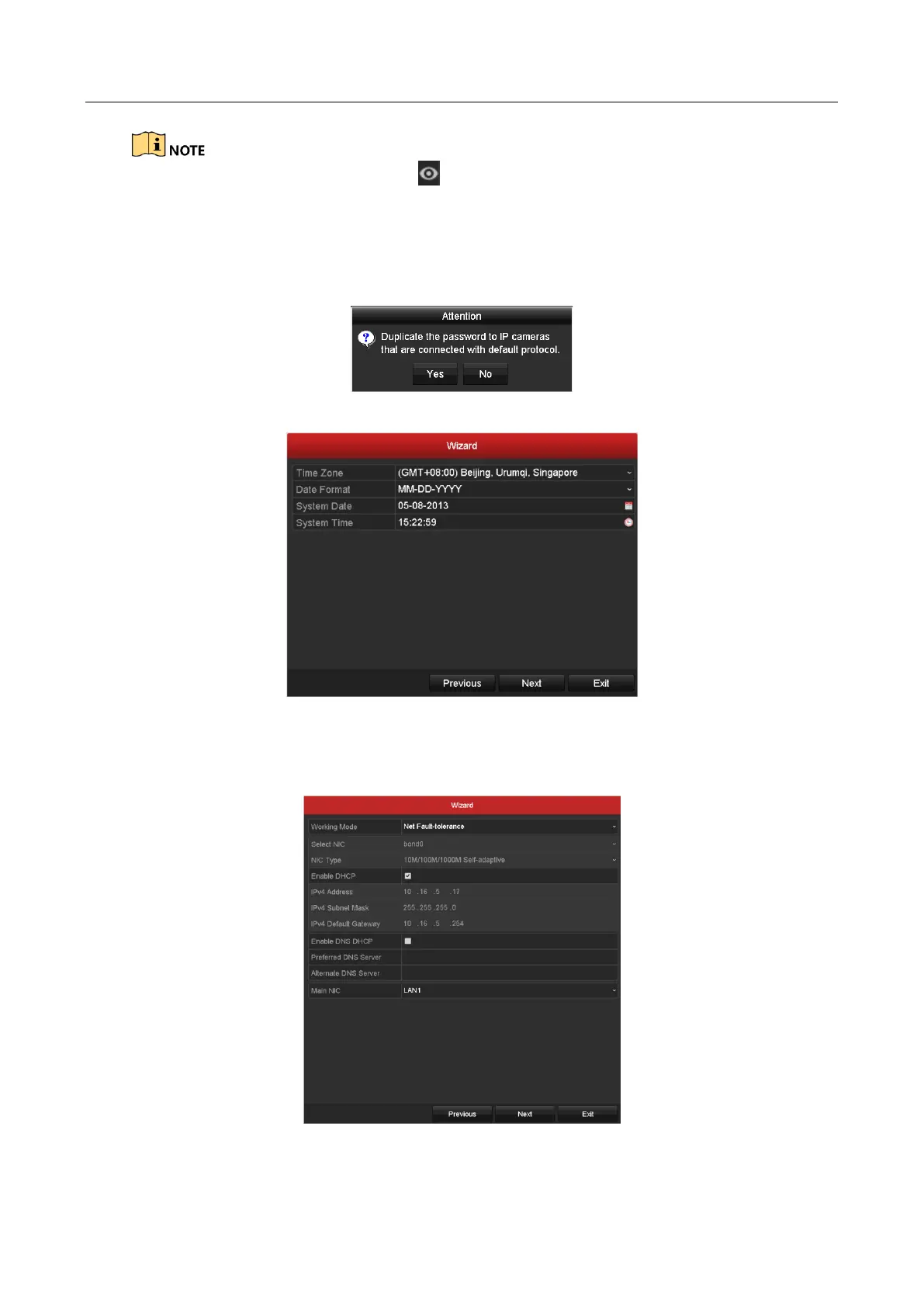

Clear-text password is supported. Click the icon and you can see the clear text of the password.
Click the icon again and the content of the password restores invisible.
Step 3 Click Next button and the Attention box pops up as shown below. Click Yes to duplicate the
password of the device to IP cameras that are connected with default protocol. Or click No
to enter the Date and Time Settings interface.
Figure 2-19 Duplicate the Password
Figure 2-20 Date and Time Settings
Step 4 After the time settings, click Next button to enter the General Network Setup Wizard
interface as shown below.
Figure 2-21 General Network Configuration

HIKVISION DS-7204HQHI-F1/N Specifications

General

Voltage	12 V
Product color	Black
Rack capacity	1U
Audio formats supported	G.711
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	15 W

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
