Digital Video Recorder User Manual
69

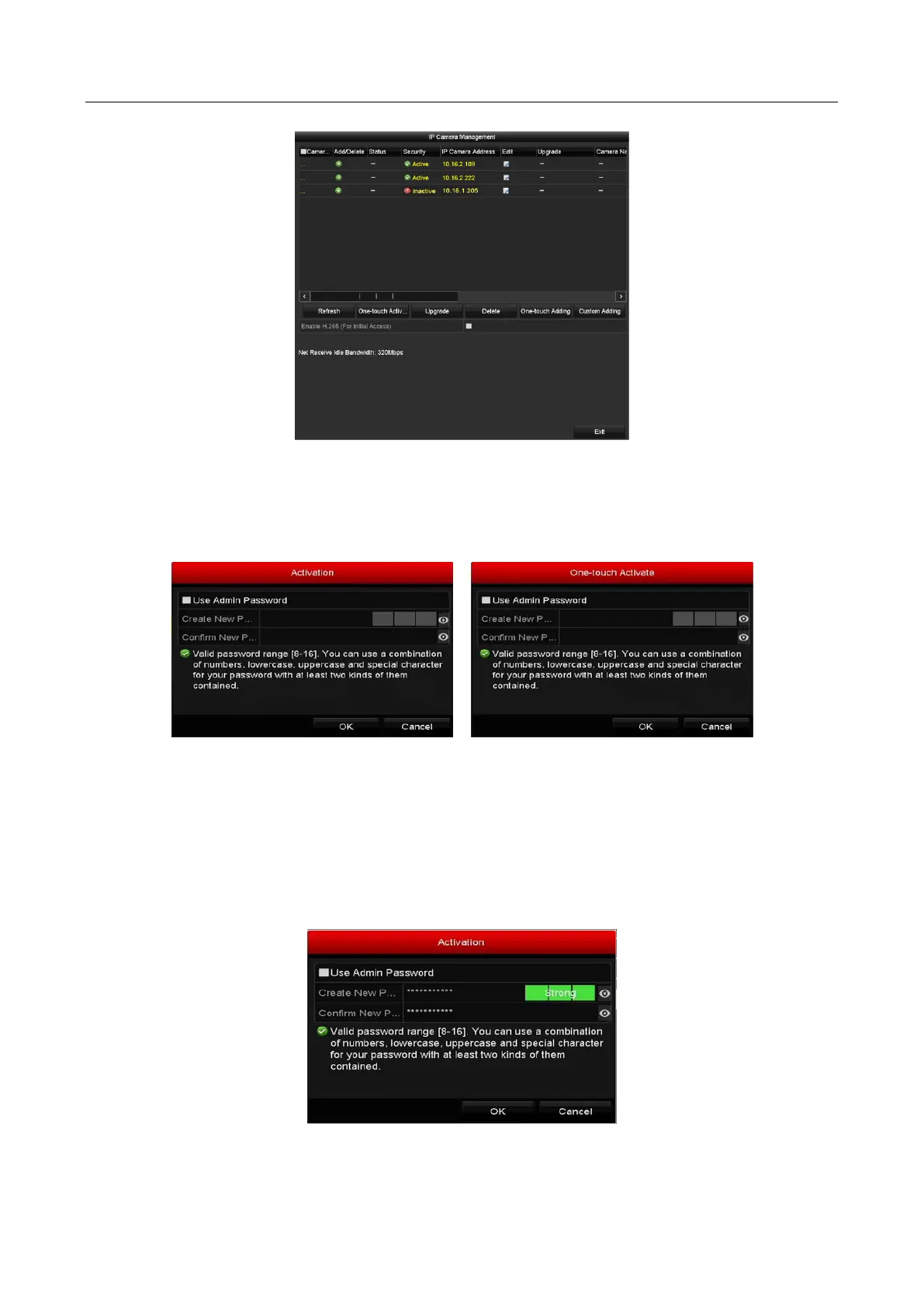

Figure 2-36 IP Camera Management Interface
Step 2 Click the inactive icon of the camera to enter the following interface to activate it. You can
also select multiple cameras from the list and click the One-touch Activate to activate the
cameras in batch.
Figure 2-37 Activate the Camera
Step 3 Set the password of the camera to activate it.
Use Admin Password: When you check the checkbox, the camera (s) will be configured
with the same admin password of the operating DVR.
Create New Password: If the admin password is not used, you must create the new
password for the camera and confirm it.
Figure 2-38 Set New Password

HIKVISION DS-7204HQHI-F1/N Specifications

General

Voltage	12 V
Product color	Black
Rack capacity	1U
Audio formats supported	G.711
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	15 W

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
